SKU: SALKB12F-SKF

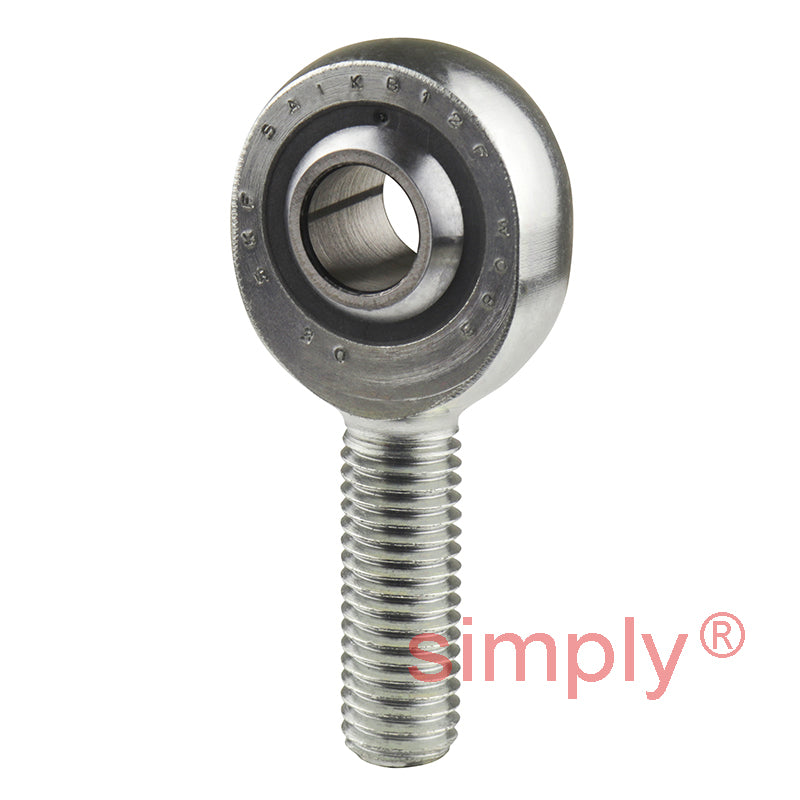

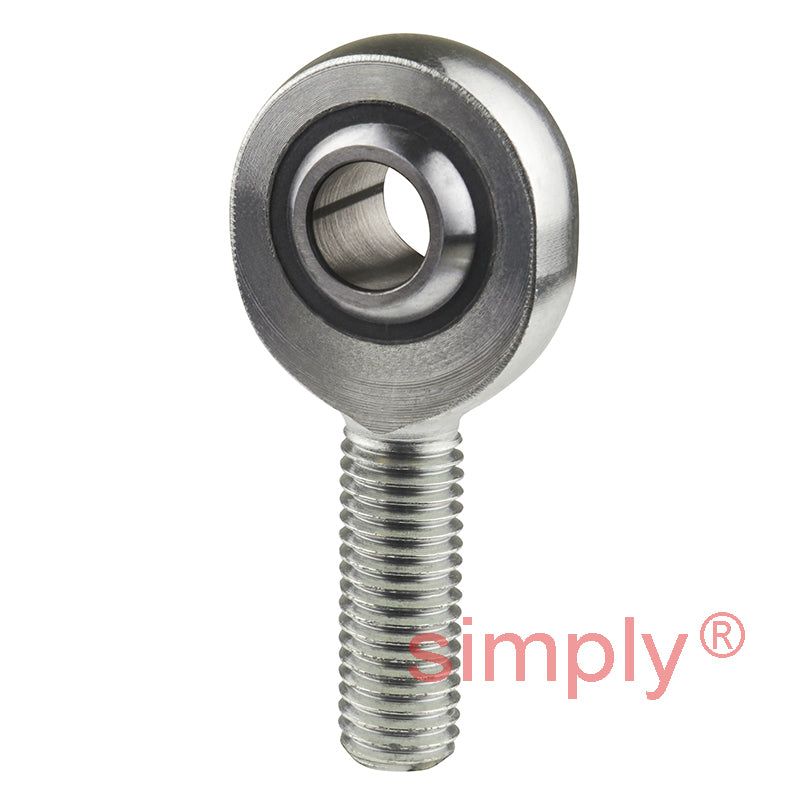

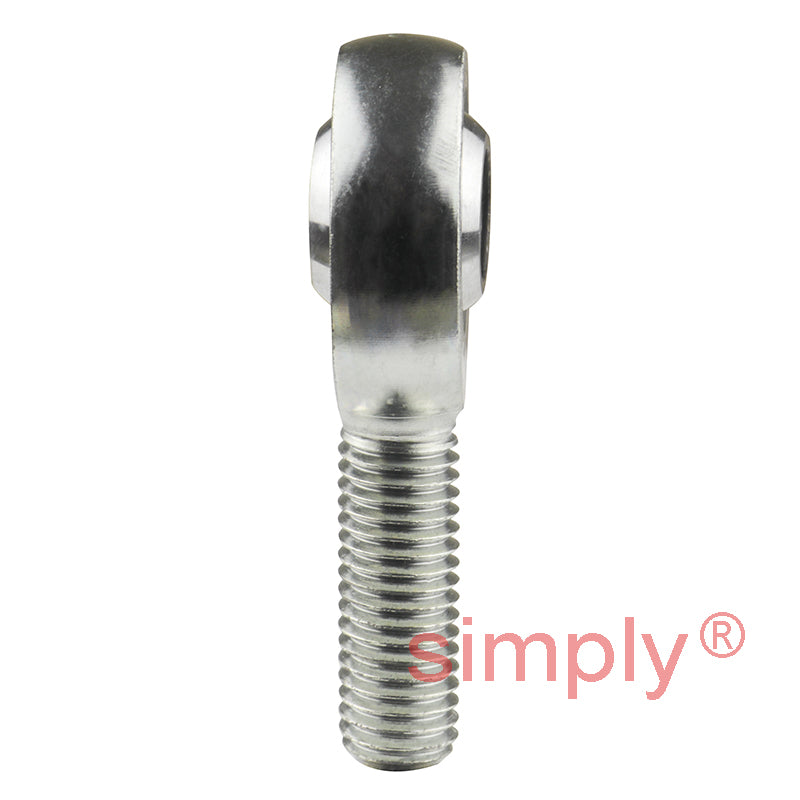

SKF SALKB12F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- €38.73 ex VAT
- Sale price
- €38,73
- Regular price
-
In stock
Quantity Price Breaks
10
€34.47
19
€32.53
29
€32.15
39
€31.76
49
€31.37
74
€30.98
99
€29.05
199
€28.66
249
€28.27
499
€27.89
999
€27.11
SKU:
SALKB12F-SKF
SKF SALKB12F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- €38.73 ex VAT
- Sale price
- €38,73
- Regular price
-
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Technical
| d | = | 12mm |
| d2 max | = | 33mm |
| G | = | M12 |
| B | = | 16mm |
| C1 max | = | 12mm |
| h | = | 54mm |
| a | = | 13deg |
| Dynamic load C | = | 13.2 kN |
| Static load Co | = | 15 kN |
| Weight | = | 0.1 kg |
| dk | = | 22.2mm |
| l1 min | = | 32mm |
| l2 max | = | 72mm |
| r1 min | = | 0.3mm |
