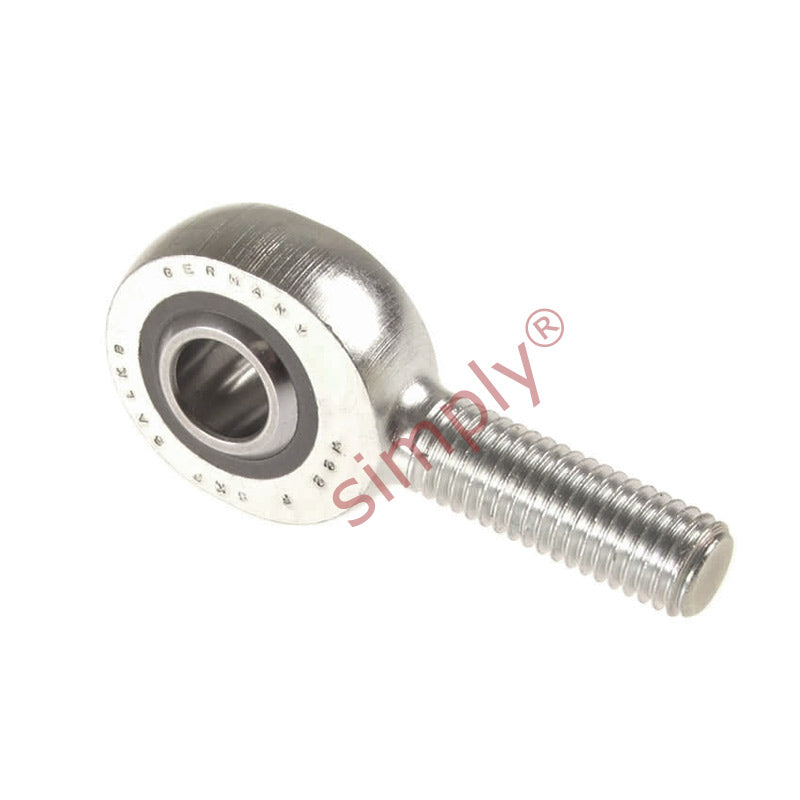

SKF SALKB5F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
SKF SALKB5F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
Equivalent to: MSL-M05
Out of stock
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 5mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 5mm |
|---|---|
| d2 max | 19mm |
| G | M5 |
| B | 8mm |
| C1 max | 6mm |
| h | 33mm |
| a | 13deg |
| Dynamic load C | 3.25 kN |
| Static load Co | 5.3 kN |
| Weight | 0.015 kg |
| dk | 11.1mm |
| l1 min | 19mm |
| l2 max | 44mm |
| r1 min | 0.3mm |
