SKU: SALKB8F-SKF

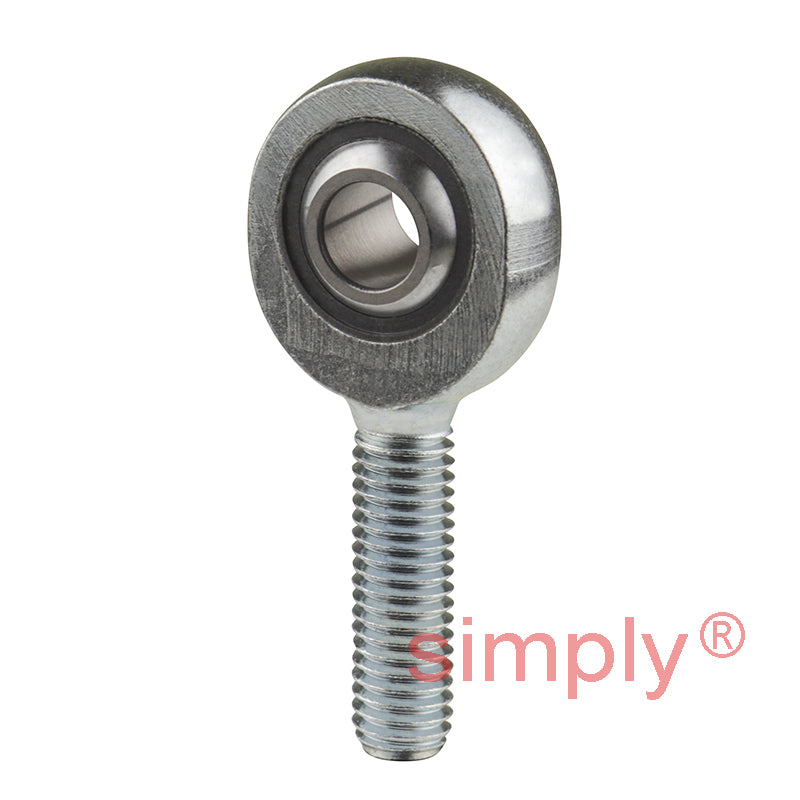

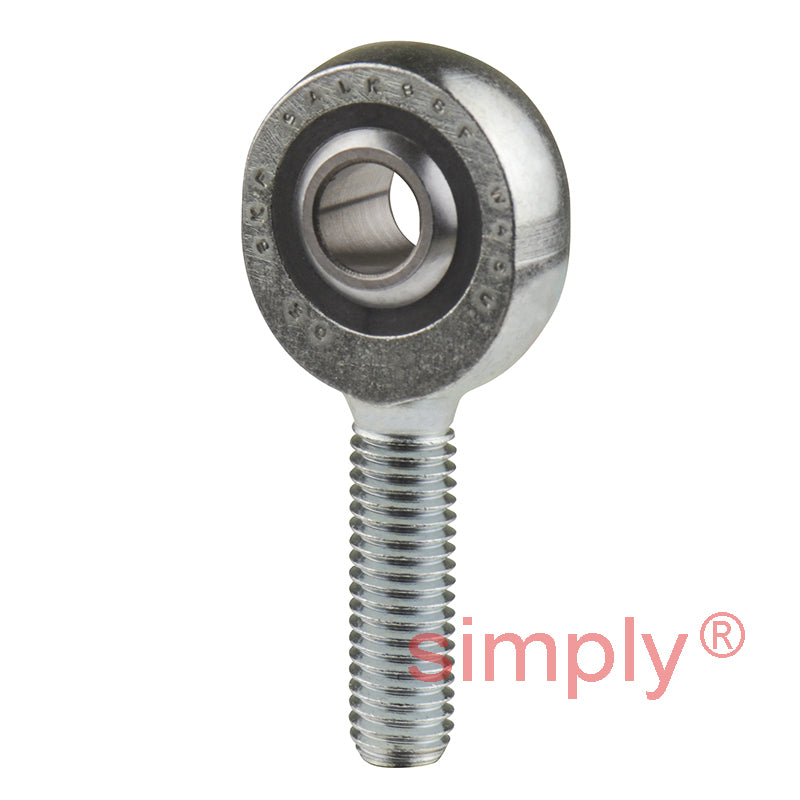

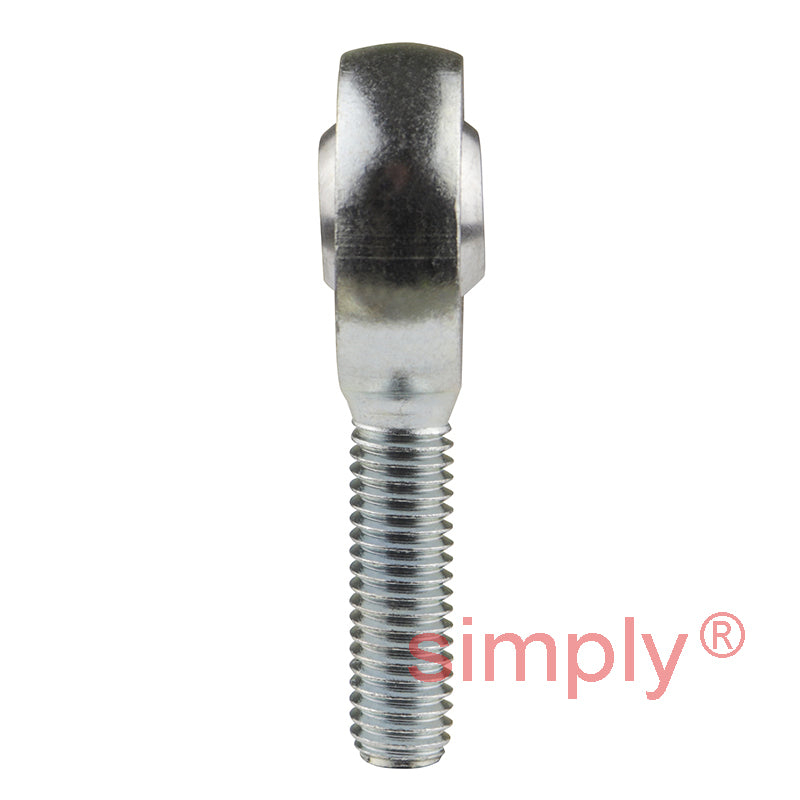

SKF SALKB8F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M8 Thread
- Regular price
- €38.19 ex VAT
- Sale price
- €38,19
- Regular price
-
In stock
Quantity Price Breaks
10
€33.99
19
€32.08
29
€31.70
39
€31.32
49
€30.93
74
€30.55
99
€28.64
199
€28.26
249
€27.88
499
€27.50
999
€26.73
SKU:
SALKB8F-SKF
SKF SALKB8F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M8 Thread
- Regular price
- €38.19 ex VAT
- Sale price
- €38,19
- Regular price
-
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |

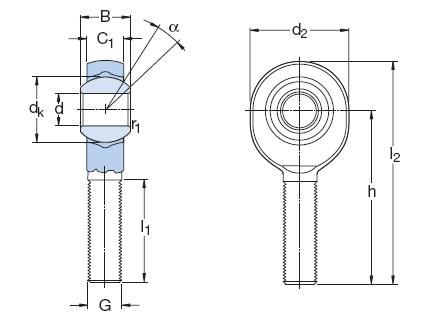

Technical
| d | = | 8mm |
| d2 max | = | 25mm |
| G | = | M8 |
| B | = | 12mm |
| C1 max | = | 9mm |
| h | = | 42mm |
| a | = | 14deg |
| Dynamic load C | = | 7.1 kN |
| Static load Co | = | 10 kN |
| Weight | = | 0.035 kg |
| dk | = | 15.8mm |
| l1 min | = | 25mm |
| l2 max | = | 56mm |
| r1 min | = | 0.3mm |
