SKU: SAPFT203-11.TRI

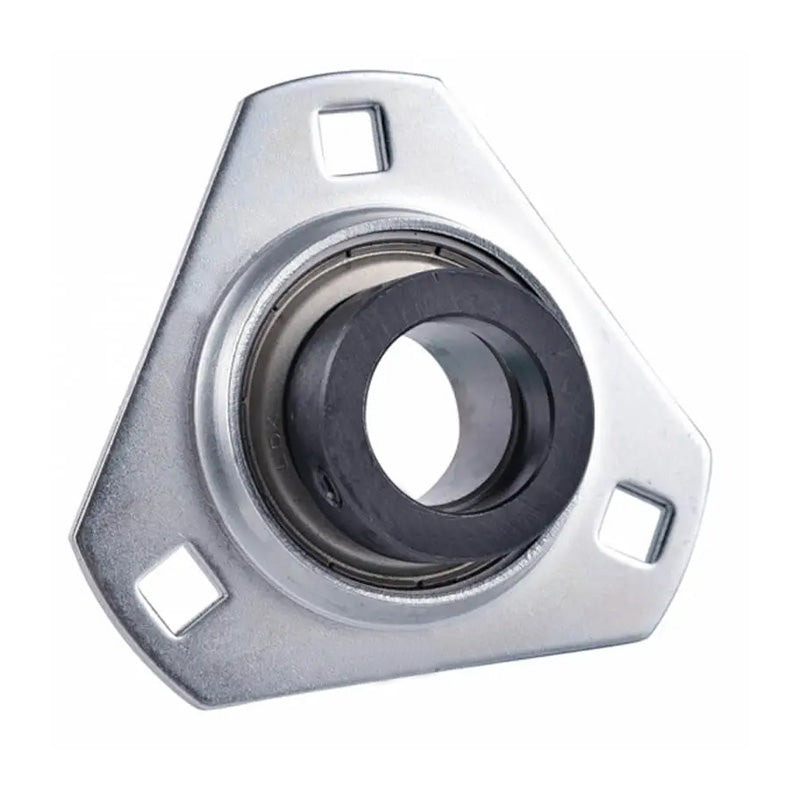

SAPFT203-11 Pressed Steel 3 Bolt Triangle Flange Housing with 11/16 inch Collar Insert
SAPFT203-11 Pressed Steel 3 Bolt Triangle Flange Housing with 11/16 inch Collar Insert
Equivalent to: SLFT11/16EC
Out of stock
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Style:
- SAPFT
- Pitch Circle Diameter:
- 63.5mm
Technical
Technical
| d | 11/16 inch |
|---|---|
| a | 81mm |
| e | 63.5mm |
| w | 28.5mm |
| m | 14mm |
| s | 7.1mm |
| t | 4mm |
| f | 49mm |
| B | 28.6mm |
| n | 6.5mm |
| Bolt | M6 |
| Weight | 0.26 kg |
| Dynamic load | 760 N |
| Static load | 450 N |
