SKU: SB047XP0

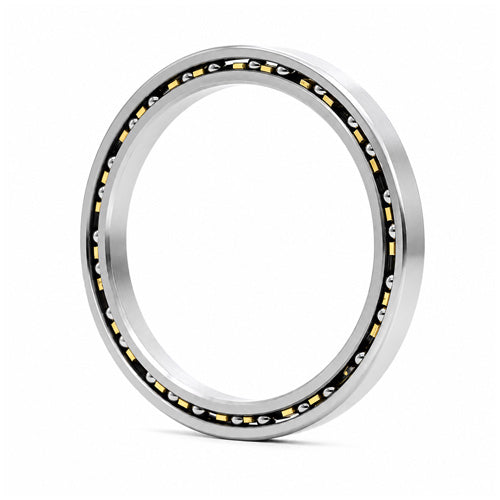

Silverthin SB047XP0 Thin Section Four Point Contact Ball Bearing 4.75x5.375x0.312 inch - Allow 7-10 Days
Silverthin SB047XP0 Thin Section Four Point Contact Ball Bearing 4.75x5.375x0.312 inch - Allow 7-10 Days
Equivalent to: KB047XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 136.53mm = 5-3/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 5.375 inch |
| Width | 0.312 inch |
| L1 | 4.981 inch |
| L2 | 5.143 inch |
| L3 | 5.21 inch |
| Static Radial Load | 9.043 kN |
| Dynamic Radial Load | 3.381 kN |
| Static Thrust Load | 22.637 kN |
| Dynamic Thrust Load | 8.478 kN |
| Static Moment Load | 22.868 kN |
| Dynamic Moment Load | 8.594 kN |
| Weight | 0.1542kg |
