SKU: SB110CP0

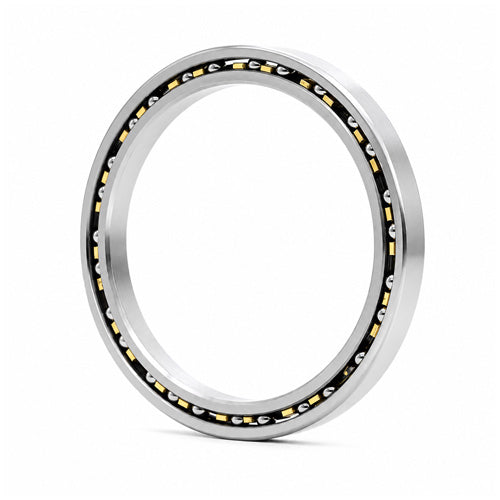

Silverthin SB110CP0 Thin Section Radial Contact Ball Bearing 11x11.625x0.312 inch - Allow 7-10 Days
Silverthin SB110CP0 Thin Section Radial Contact Ball Bearing 11x11.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB110CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 279.4mm = 11 inch
- Outside Diameter:
- 295.28mm = 11-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 11 inch |
|---|---|
| D | 11.625 inch |
| Width | 0.312 inch |
| L1 | 11.231 inch |
| L2 | 11.393 inch |
| L3 | 11.447 inch |
| Static Radial Load | 20.435 kN |
| Dynamic Radial Load | 5.858 kN |
| Weight | 0.3402 kg |
