SKU: SB140CP0

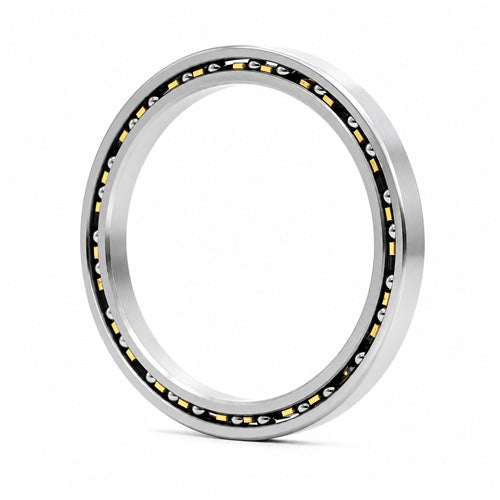

Silverthin SB140CP0 Thin Section Radial Contact Ball Bearing 14x14.625x0.312 inch - Allow 7-10 Days
Silverthin SB140CP0 Thin Section Radial Contact Ball Bearing 14x14.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB140CP0 FPCB1400
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 355.6mm = 14 inch
- Outside Diameter:
- 371.48mm = 14-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 14 inch |
|---|---|
| D | 14.625 inch |
| Width | 0.312 inch |
| L1 | 14.231 inch |
| L2 | 14.393 inch |
| L3 | 14.439 inch |
| Static Radial Load | 25.853 kN |
| Dynamic Radial Load | 6.819 kN |
| Weight | 0.4763 kg |
