SKU: SB195-M2300

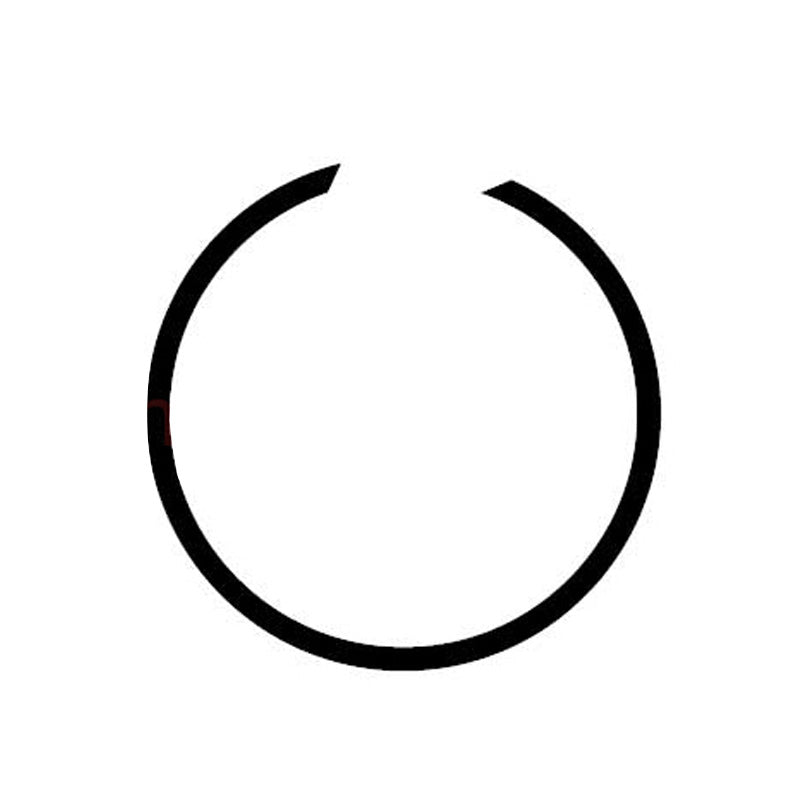

SB195 Snap Ring to Suit 195mm Bore
Equivalent to: CFH195 CFH-195 2300-195 SB195 SB-195 M2300-195
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Flat Wire Snap Rings for internal bores and housings: These snap rings are designed to fit into grooves machined into a bore or housing. Once fitted into the groove the portion of the ring protruding from the groove serves to retain components into place, one such example would be to position bearings in a housing by their outer raceway. It is not uncommon for 2 grooves to be machined in housing such that bearings can be installed up against the inner snap ring and then once the outer ring is fitted it is retained and located.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 45-52
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 195mm
- Shaft Size:
- 198mm
Technical
| --- | Clip / Groove Dimensions |
|---|---|
| d1 | 195mm |
| s (ring thickness) | 3mm (Tolerance -0.1) |
| b (ring width) | 5mm (Tolerance -0.1) |
| d3 (un-sprung diameter max) | 199.9mm |
| d2 (groove depth) | 198mm (Tolerance + 0.29) |
| m (groove width min) | 3.2mm |
| --- | Loadings |
| FN (groove load capacity subject to material) | 154 kN |
| FR (load capacity of ring) | 61.5 kN |
