SKU: SBLF.201-8

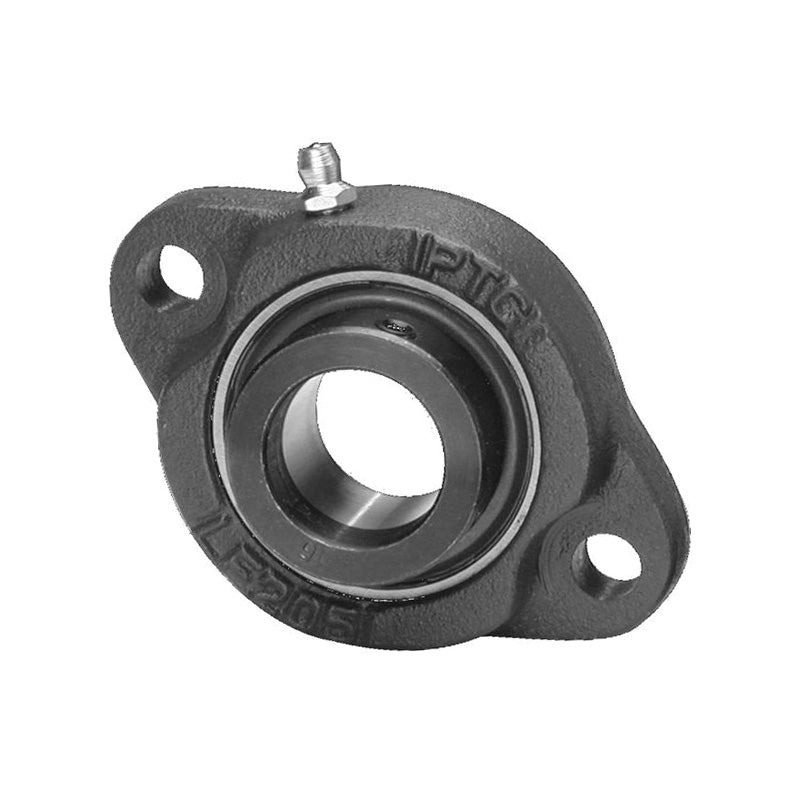

SBLF201-8 Imperial Two Bolt Cast Iron Oval Housing with 1/2 inch Bore Grub Screw Insert
SBLF201-8 Imperial Two Bolt Cast Iron Oval Housing with 1/2 inch Bore Grub Screw Insert
Regular price
€13,97
ex VAT
Regular price
Sale price
€13,97
ex VAT
In stock
Price Break
3+
€10,62
4+
€10,02
9+
€9,90
19+
€9,78
49+
€9,67
99+
€9,55
499+
€8,95
999+
€8,83
1999+
€8,71
2999+
€8,59
4999+
€8,35
Quantity
Couldn't load pickup availability
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 1/2 inch |
|---|---|
| a | 81mm |
| e | 63.5mm |
| b | 56mm |
| i | 9.5mm |
| s | 8mm |
| g | 9.5mm |
| l | 18mm |
| Bolt | M6 |
| z | 25.5mm |
| n | 6mm |
| Weight | 0.3 kg |
| Dynamic load | 750 kgf |
| Static load | 450 kgf |
