SKU: SBLF.204-12

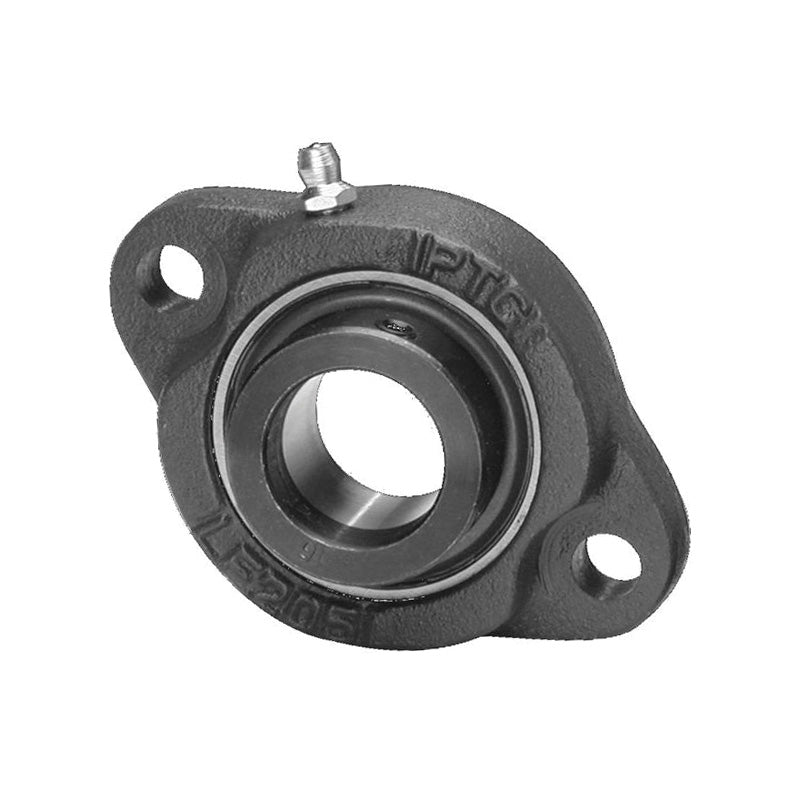

SBLF204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore Grub Screw Insert
SBLF204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore Grub Screw Insert
Regular price
€12,67
ex VAT
Regular price
Sale price
€12,67
ex VAT
In stock
Price Break
3+
€9,63
4+
€9,09
9+
€8,98
19+
€8,87
49+
€8,76
99+
€8,65
499+
€8,11
999+
€8,01
1999+
€7,90
2999+
€7,79
4999+
€7,57
Quantity
Couldn't load pickup availability
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 71.5mm

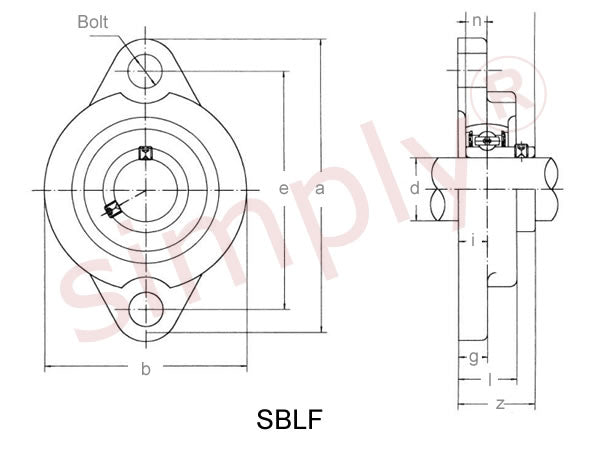

Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 90mm |
| e | 71.5mm |
| b | 61mm |
| i | 11mm |
| s | 10mm |
| g | 11mm |
| l | 20mm |
| Bolt | M8 |
| z | 29mm |
| n | 7mm |
| Weight | 0.4 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
