SKU: SBLF.206-18

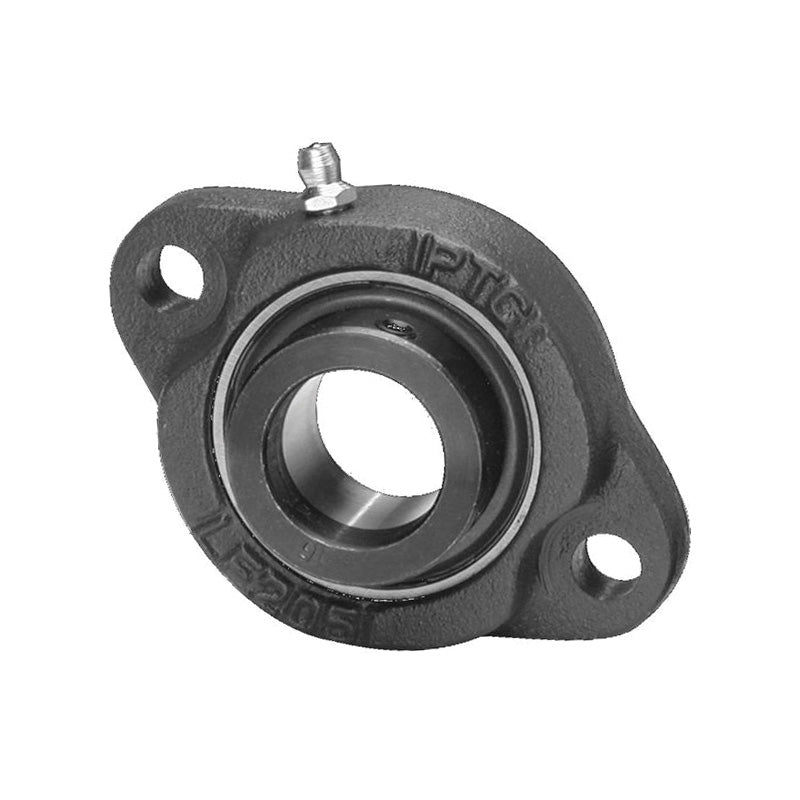

SBLF206-18 Imperial Two Bolt Cast Iron Oval Housing with 1-1/8 inch Bore Grub Screw Insert
SBLF206-18 Imperial Two Bolt Cast Iron Oval Housing with 1-1/8 inch Bore Grub Screw Insert
Regular price
€19,55
ex VAT
Regular price
Sale price
€19,55
ex VAT
In stock
Price Break
3+
€14,86
4+
€14,02
9+
€13,86
19+
€13,69
49+
€13,52
99+
€13,36
499+
€12,52
999+
€12,35
1999+
€12,19
2999+
€12,02
4999+
€11,69
Quantity
Couldn't load pickup availability
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| b | 76mm |
| i | 12mm |
| s | 12mm |
| g | 12mm |
| l | 22.5mm |
| Bolt | M10 |
| z | 34mm |
| n | 8mm |
| Weight | 0.7 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
