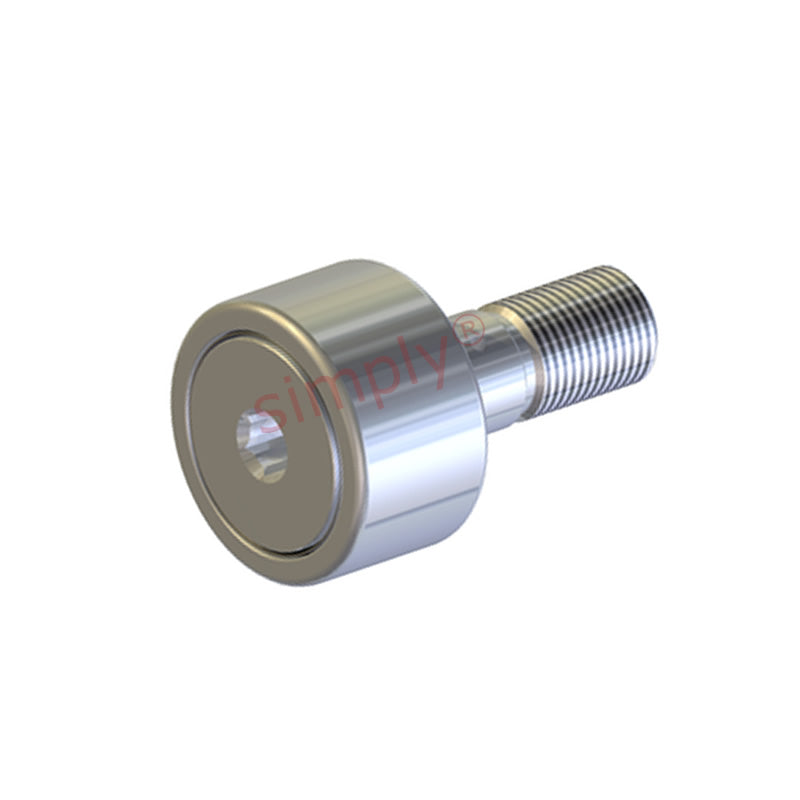

IKO SC56SB Hex Head Stainless Steel Sealed Cylindrical Cam Follower 1-3/4 inch Outside Diameter Allow 7-10 Days
IKO SC56SB Hex Head Stainless Steel Sealed Cylindrical Cam Follower 1-3/4 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Stainless Steel Sealed Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 25.4mm = 1 inch
- Pitch:
- UNF 3/4-16
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 1 inch |
| C | 0.75 inch |
| D | 1.75 inch |
| E | 7/8 inch |
| Thread class 2A F | 3/4-16 UNF |
| G | 7/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 1-3/64 inch |
| Recommended bore | 0.75 inch |
| Recommended torque | 625 lbf-in |
| Basic dynamic rating | 5730 lbs |
| Max static capacity | 6000 lbs |
