SKU: SC8M2240X36

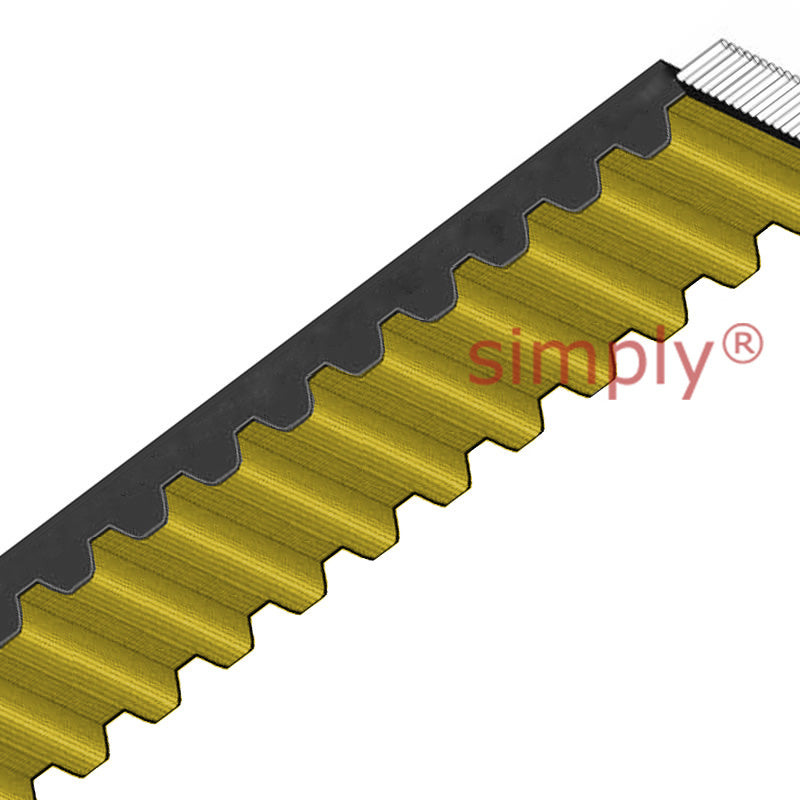

ContiTech SC8M2240X36 Synchrochain Timing Belt 36mm Width 2240mm Length 280 Teeth
- Regular price
- €286.82 ex VAT
- Sale price
- €286,82
- Regular price
-
Quantity Price Breaks
ContiTech SC8M2240X36 Synchrochain Timing Belt 36mm Width 2240mm Length 280 Teeth
- Regular price
- €286.82 ex VAT
- Sale price
- €286,82
- Regular price
-
Description
Standard Synchrochain Timing Belts: These timing belts are high-performance timing belts designed for extreme applications requiring exceptional strength and durability. They offer excellent resistance to chemicals, oils, UV rays, and ozone, making them suitable for harsh tropical climates. With a temperature range of -40°C to 80°C, these belts withstand reverse flexing and operate maintenance-free at speeds up to 40 m/s. Ultra-strong Aramid tensile members ensure high torque transmission at low speeds, while the precise tooth match prevents ratcheting. Compact and economical, the belt enables lightweight, low-noise drives that require no lubrication or re-tightening.
Benefits: Maintenance-free, withstands reverse flexing, highly resistant to various chemicals and oils
Technical
| Number of Teeth | = | 280 |
| Belt Length | = | 2240mm |
| Belt Width | = | 36mm |
| Tooth Pitch t | = | 8mm |
| Belt Depth B1 | = | 5.6mm |
| Belt Depth B2 | = | 3.4mm |
| Temperature Range | = | -40 to 80 Deg C |
| Dynamic Stressing Range | = | Up to 40 m/s |
| Permissible Peripheral Force for Dynamic Applications | = | 3790 N |
| Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) | = | 4650 N |
| Weight Kg | = | 0.395 kg |
