SKU: SCC14M2660X90

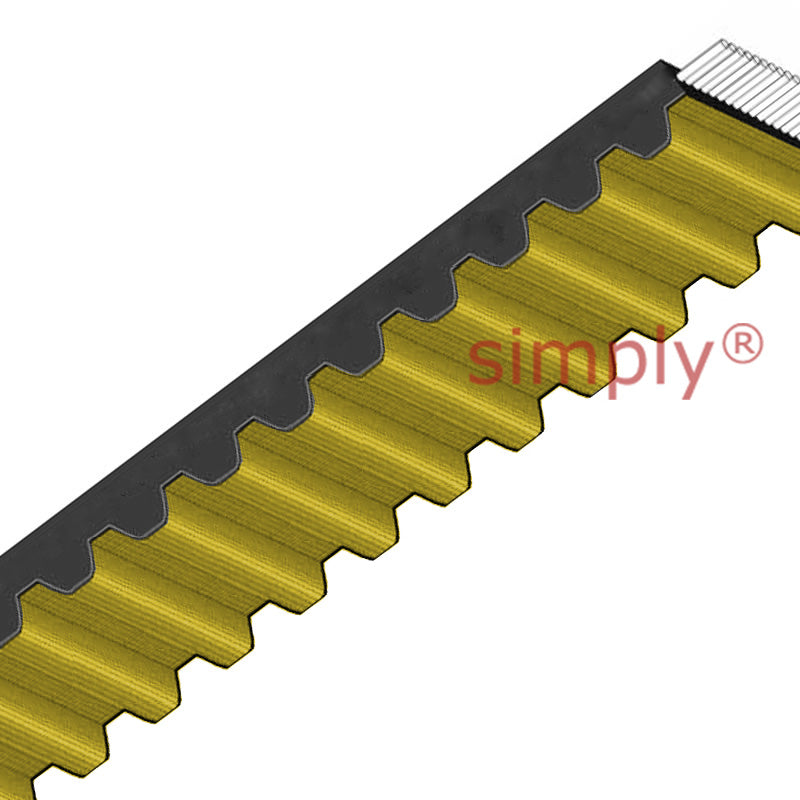

ContiTech SCC14M2660X90 Synchrochain Carbon Timing Belt 90mm Width 2660mm Length 190 Teeth

Name: ContiTech SCC14M2660X90 Synchrochain Carbon Timing Belt 90mm Width 2660mm Length 190 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SCC14M2660X90
Price: 1726.84 EUR
Availability: InStock

€1.726,84 ex VAT

Sale Sold out

In stock

Price Break

3+ €1.312,31

5+ €1.238,59

9+ €1.223,84

19+ €1.209,10

49+ €1.194,35

74+ €1.179,61

99+ €1.105,88

199+ €1.091,14

249+ €1.076,39

499+ €1.061,65

999+ €1.032,16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

B8HVXKIRPM

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 90mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 2660mm
Number of Teeth:: 190

Technical

Number of Teeth	190
Belt Length	2660mm
Belt Width	90mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	24500 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	31750 N
Weight Kg	1.87 kg
