SKU: SCH5/8-RHP

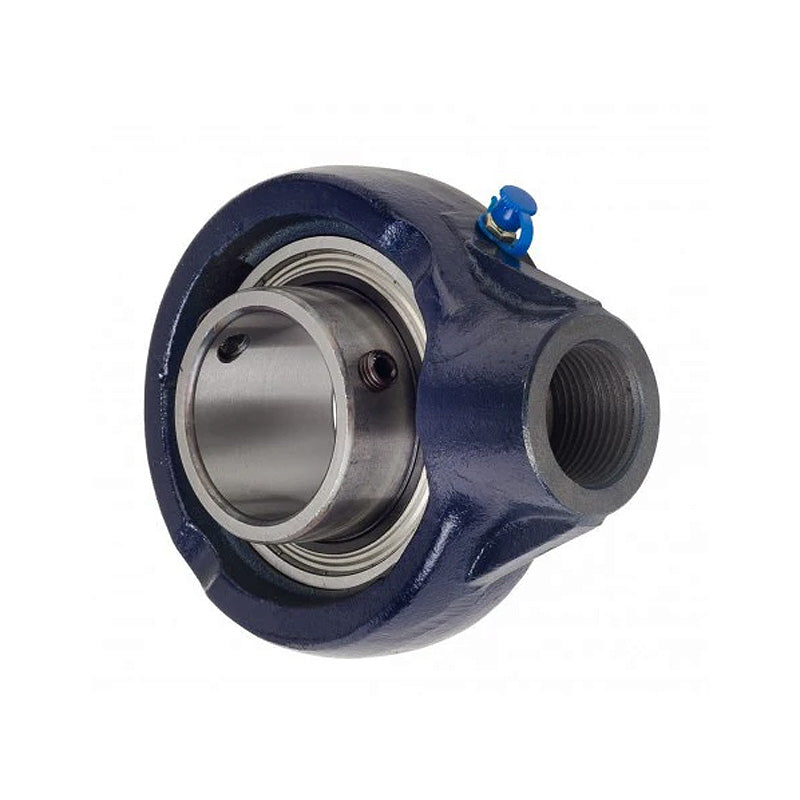

RHP SCH5/8 Metric Thread Cast Iron Hanger Bearing Unit and 5/8 inch Bore Insert 57.5mm Outside Diameter

RHP SCH5/8 Metric Thread Cast Iron Hanger Bearing Unit and 5/8 inch Bore Insert 57.5mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 5/8 inch
G1 0.748 inch
L 2.264 inch
H 3.268 inch
H1 2.106 inch
Threads M16X2 Metric
A 1.181 inch
A1 0.625 inch
B 1.078 inch
s 0.455 inch
d1 0.953 inch
Dynamic load Cr 7300 N
Static load Cor 4760 N
Rec max speed 8800 rpm
Weight 0.6 kg
Insert <a href="advanced_search_result.php?keywords=1017-5/8G+insonly">1017-5/8G Click Here</a>
Casting group 0/1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
