SKU: SD250CP0

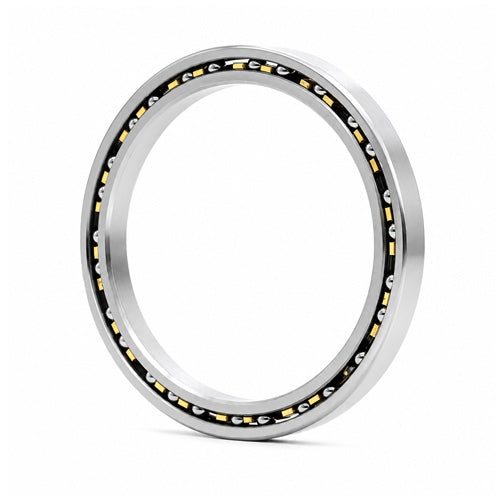

Silverthin SD250CP0 Thin Section Radial Contact Ball Bearing 25x26x0.5 inch - Allow 7-10 Days
Silverthin SD250CP0 Thin Section Radial Contact Ball Bearing 25x26x0.5 inch - Allow 7-10 Days
Equivalent to: KD250CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 635mm = 25 inch
- Outside Diameter:
- 660.4mm = 26 inch
- Width:
- 12.7mm = 1/2 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

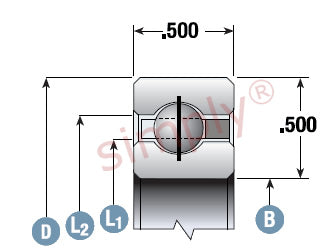

| B | 25 inch |
|---|---|
| D | 26 inch |
| Width | 0.5 inch |
| L1 | 25.37 inch |
| L2 | 25.63 inch |
| L3 | 25.688 inch |
| Static Radial Load | 77.586 kN |
| Dynamic Radial Load | 19.892 kN |
| Weight | 2.1727 kg |
