SKU: SE509V-SKF

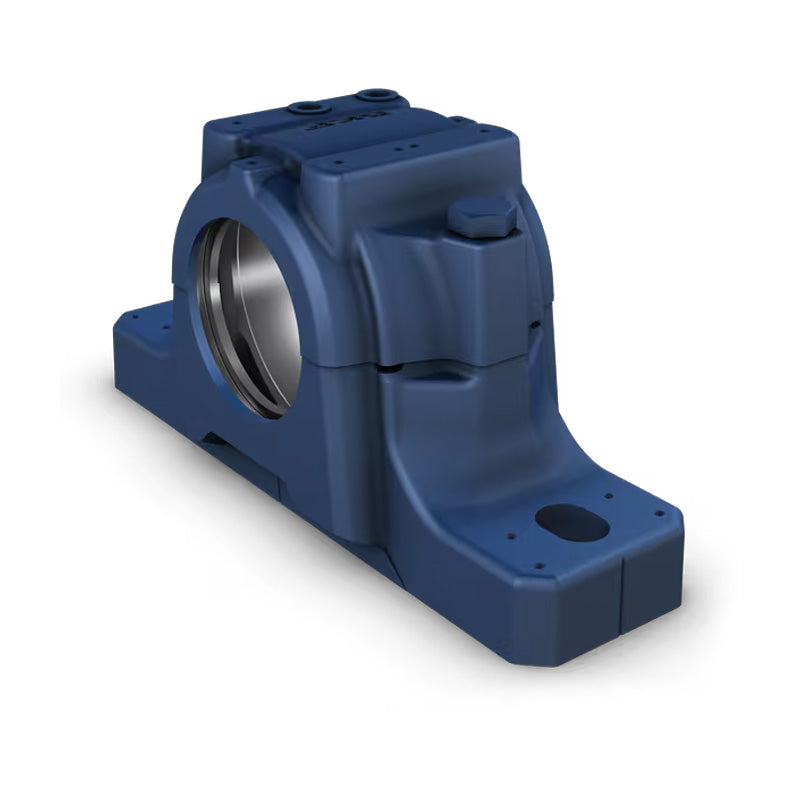

SKF SE509V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
SKF SE509V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
Regular price
€95,43
ex VAT
Regular price
Sale price
€95,43
ex VAT
Equivalent to: SNL509V
In stock
Price Break
4+
€72,52
9+
€68,45
19+
€67,63
29+
€66,82
39+
€66,00
49+
€65,19
59+
€61,12
69+
€60,30
79+
€59,49
89+
€58,67
99+
€57,04
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 169.86mm = 6.687 (6-11/16) inch
Technical
Technical
| da | 40mm |
|---|---|
| A | 3-3/8 inch = 85mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 3-13/16 inch = 97mm |
| A3 | 5-15/16 inch = 150mm |
| H | 4-5/16 inch = 109mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J max | 6-7/8 inch = 175mm |
| J min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.38 kg |
