SKU: SF1.1/4A-RHP

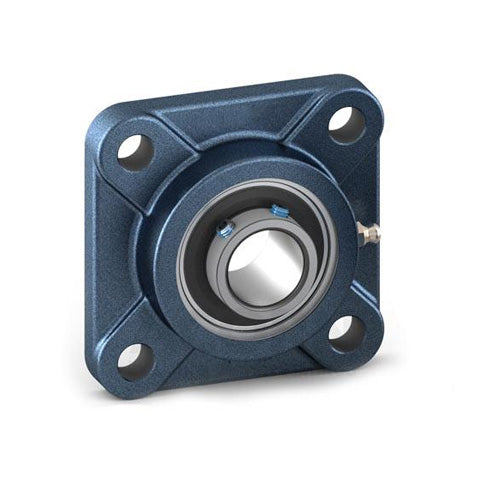

RHP SF1-1/4A Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Flat Back Insert
RHP SF1-1/4A Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Flat Back Insert
Out of stock
Share this product
Description
Description
|
RHP SF A Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 91.999mm = 3.622 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.626 inch |
| H | 3.752 inch |
| J | 3.622 inch |
| G | 0.5 inch |
| A | 1.236 |
| A1 | 1.827 inch |
| A4 | 0.5 inch |
| B1 | 1.374 inch |
| s1 | 0.376 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static Load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-1-1/4AG+insonly">1235-1-1/4AG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
