SKU: SF1.15/16-RHP

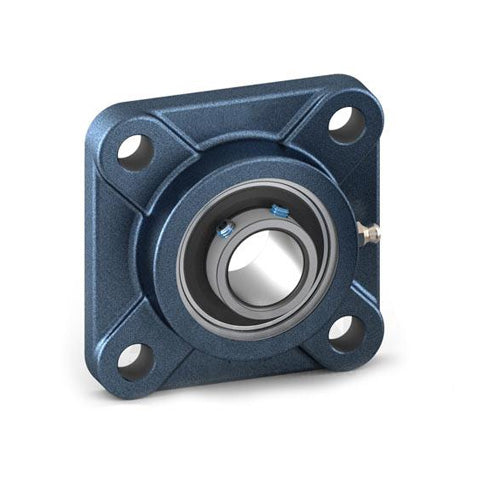

RHP SF1-15/16 Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Grub Screw Full Width Insert

RHP SF1-15/16 Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Grub Screw Full Width Insert
Regular price €98,25 ex VAT
Regular price Sale price €98,25 ex VAT
Sale Sold out

In stock

Price Break
10+ €74,66
20+ €70,47
30+ €69,63
40+ €68,79
50+ €67,95
75+ €67,11
100+ €62,92
200+ €62,08
250+ €61,24
500+ €60,40
1000+ €58,72
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-15/16 inch
L 5.626 inch
H 4.563 inch
J 4.37 inch
G 0.625 inch
A 1.563
A1 2.383 inch
A4 0.563 inch
B 2.031
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static Load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
