SKU: SF180CP0

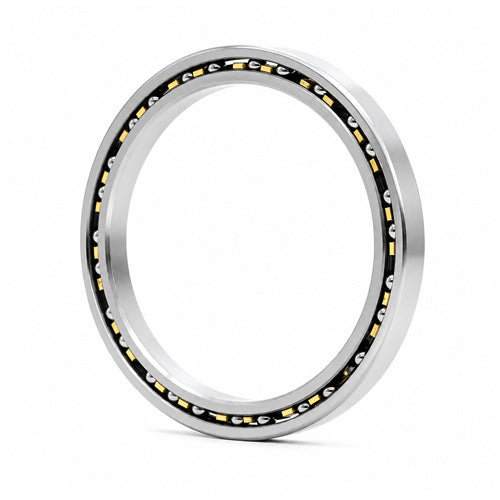

Silverthin SF180CP0 Thin Section Radial Contact Ball Bearing 18x19.5x0.75 inch - Allow 7-10 Days
Silverthin SF180CP0 Thin Section Radial Contact Ball Bearing 18x19.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF180CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 457.2mm = 18 inch
- Outside Diameter:
- 495.3mm = 19-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 18 inch |
|---|---|
| D | 19.5 inch |
| Width | 0.75 inch |
| L1 | 18.555 inch |
| L2 | 18.945 inch |
| L3 | 19.096 inch |
| Static Radial Load | 94.138 kN |
| Dynamic Radial Load | 30.346 kN |
| Weight | 3.5834 kg |
