SKU: SF2.5/8DEC-RHP

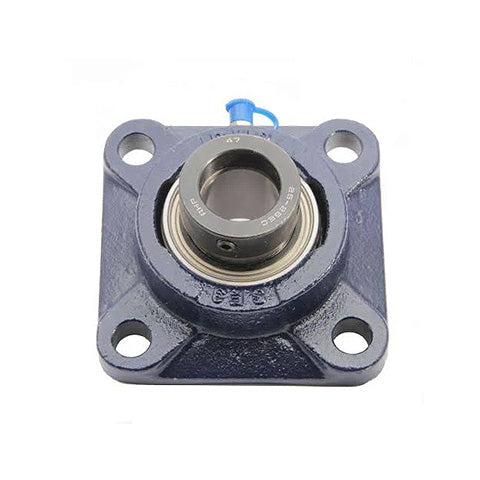

RHP SF2-5/8DEC Four Bolt Square Cast Iron Flange Housing and 2-5/8 inch Bore Eccentric Collar Full Width Insert
RHP SF2-5/8DEC Four Bolt Square Cast Iron Flange Housing and 2-5/8 inch Bore Eccentric Collar Full Width Insert
Out of stock
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 66.68mm = 2.625 (2-5/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 149.23mm = 5.875 (5-7/8) inch
Technical
Technical
| Bore | 2-5/8 inch |
|---|---|
| L | 7.382 inch |
| H | 6.122 inch |
| J | 5.875 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A3 | 3.341 inch |
| A4 | 0.709 inch |
| B3 | 3.361 inch |
| s2 | 1.346 inch |
| d2 | 3.812 inch |
| Dynamic load Cr | 61000 N |
| Static Load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-5/8DECG+insonly">1070-2-5/8DECG Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
