SKU: SF3/4-RHP

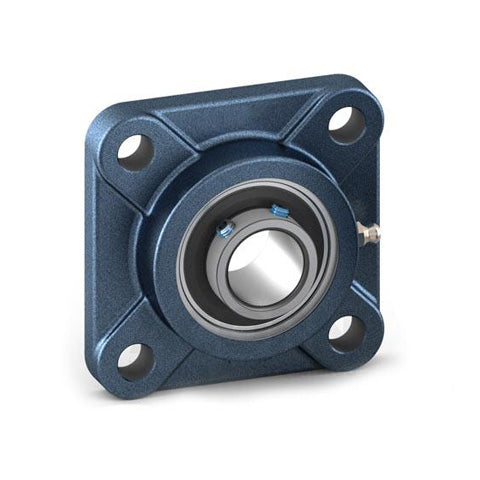

RHP SF3/4 Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Grub Screw Full Width Insert

RHP SF3/4 Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Grub Screw Full Width Insert
Regular price €39,74 ex VAT
Regular price Sale price €39,74 ex VAT
Sale Sold out

In stock

Price Break
10+ €30,19
20+ €28,50
30+ €28,16
40+ €27,82
50+ €27,48
75+ €27,14
100+ €25,45
200+ €25,11
250+ €24,77
500+ €24,43
1000+ €23,75
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

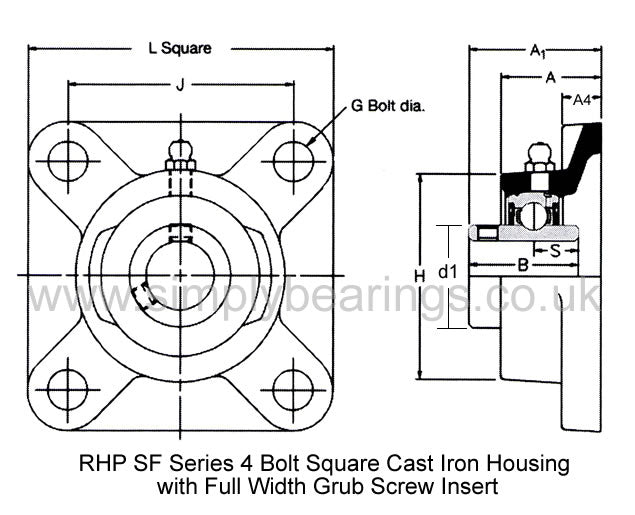

Technical
Bore 3/4 inch
L 3.374 inch
H 2.374 inch
J 2.5 inch
G 0.375 inch
A 1.094
A1 1.467 inch
A4 0.437 inch
B 1.219
s 0.502 inch
d1 1.122 inch
Dynamic load Cr 12800 N
Static Load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
