SKU: SFT1T-MB

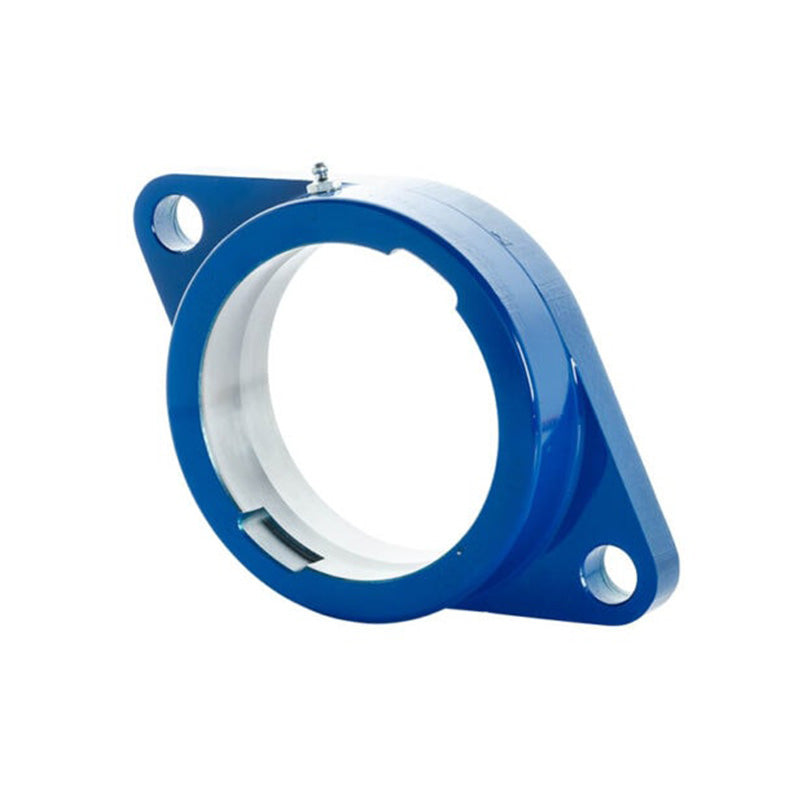

Major Brand SFT1T Metric Steel Two Bolt Oval Flanged Housing for Bearing Inserts with 40mm Outer Diameter - Allow 3-4 Weeks
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Steel Two Bolt flanged Housing: This durable and versatile bearing unit is designed for reliable shaft support in a wide range of industrial applications. Constructed from high-quality steel for strength and stability and a grease nipple for easy re-lubrication and extended service life. Its two-bolt mounting design ensures quick installation and secure positioning, making it ideal for machinery, conveyors, and general engineering use. If required these housing units can be supplied with a pre-fitted bearing insert secured with grub screws for a firm hold, please contact our sales department for more information.
Benefits: Zero downtime, heavy duty, durable
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm

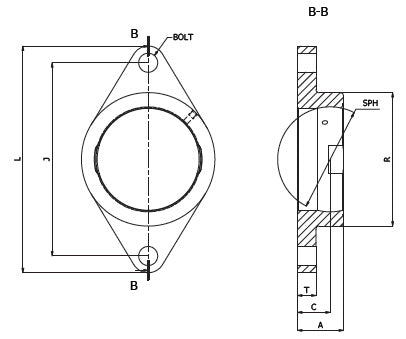

Technical
| SPH | 40mm |
|---|---|
| J - Bolt Hole Centre | 76.5mm |
| L | 98.5mm |
| C | 17mm |
| A | 24.6mm |
| R | 52.5mm |
| T | 9.5mm |
| Bolt | 10 |
