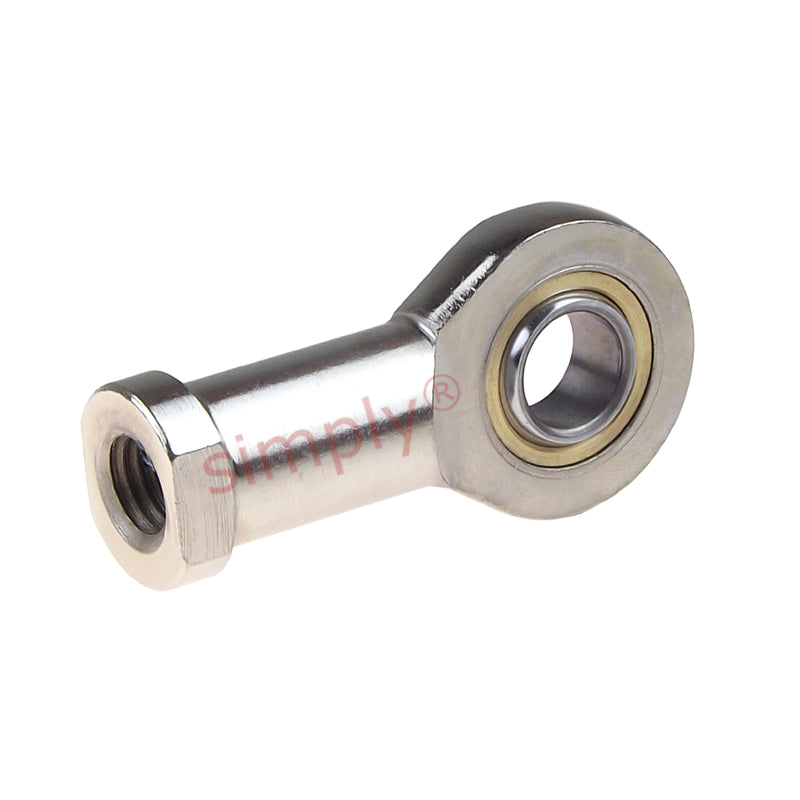

• Codex SI15C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
1 1

SKU: SI15C-CDX

Codex SI15C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread

Codex SI15C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
€22,06 ex VAT
€22,06 ex VAT
Sale Sold out

Equivalent to: GIR15UK FI15U

In stock

Price Break
10+ €16,77
19+ €15,83
29+ €15,64
39+ €15,45
49+ €15,26
74+ €15,08
99+ €14,13
199+ €13,95
249+ €13,76
499+ €13,57
999+ €13,19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M14
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
15mm
Material:
PTFE Sintered Bronze Lined
Technical
d 15mm
d2 max 41mm
G M14
B 12mm
C1 max 10.5mm
h1 61mm
Max misalignment angle 8 degrees
Dynamic load 18 kN
Static load 37.5 kN
dk 22mm
d4 22mm
l3 min 21mm
l4 max 83mm
l5 14mm
l7 min 19mm
r1 min 0.3mm
w h14 19mm
Weight 0.18 kg
