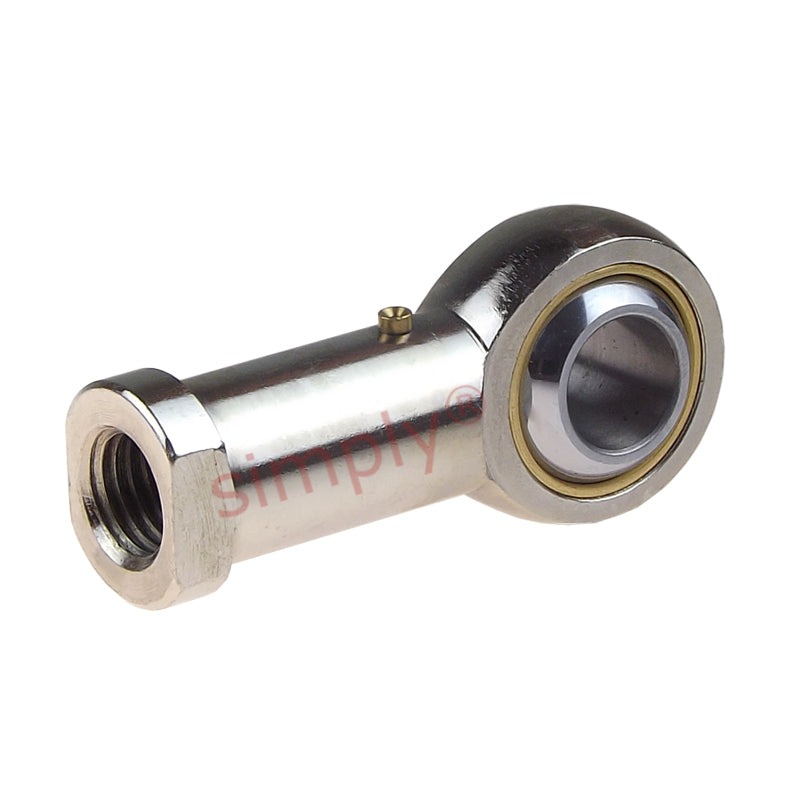

• Codex SIKAC14M Right Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
1 1

SKU: SIKAC14M-CDX

Codex SIKAC14M Right Hand Steel / Bronze Lined Plain Female Rod End M14 Thread

Codex SIKAC14M Right Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
€24,48 ex VAT
€24,48 ex VAT
Sale Sold out

Equivalent to: GIKF14PB TSF14 SIBP14S PHS14 SF14 FB-M14

In stock

Price Break
10+ €18,60
19+ €17,56
29+ €17,35
39+ €17,14
49+ €16,93
74+ €16,72
99+ €15,68
199+ €15,47
249+ €15,26
499+ €15,05
999+ €14,63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SIKC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M14
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
14mm
Material:
Bronze Lined
Technical
d 14mm
d2 max 37mm
G M14
B 19mm
C1 max 13.5mm
h1 57mm
Max misalignment angle 16 degrees
Dynamic load 17 kN
Static load 20.4 kN
dk 25.4mm
d3 20mm
d4 max 27mm
l3 min 21mm
l4 max 77mm
l5 8mm
l7 min 18mm
r1 min 0.3mm
w 22mm
Weight 0.16 kg
