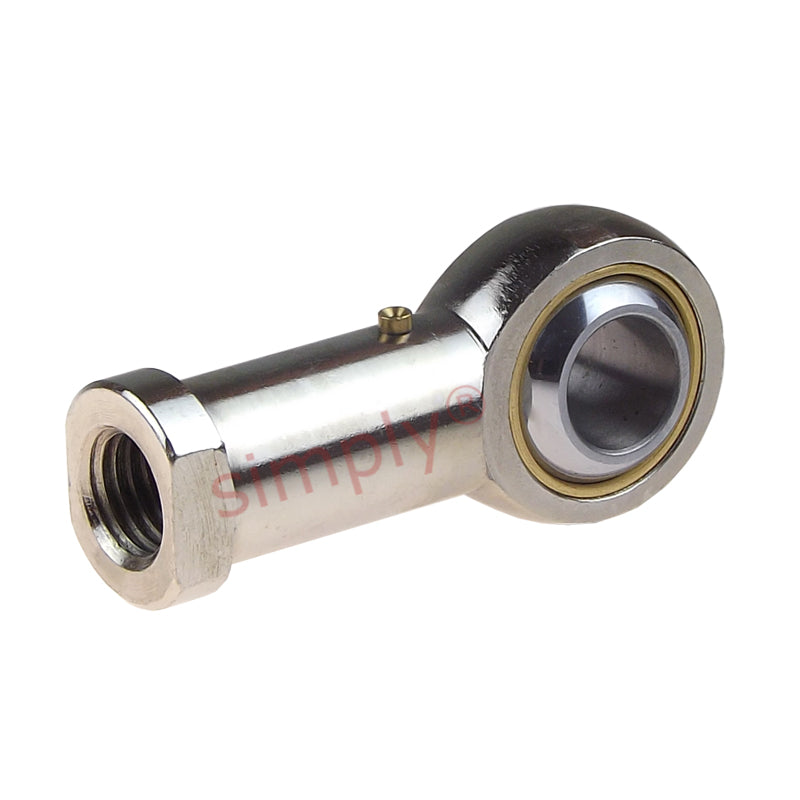

Codex SIKAC20M Right Hand Steel / Bronze Lined Plain Female Rod End M20x1.5 Thread
Codex SIKAC20M Right Hand Steel / Bronze Lined Plain Female Rod End M20x1.5 Thread
Regular price
€39,88
ex VAT
Regular price
Sale price
€39,88
ex VAT
Equivalent to: GIKF20PB TSF20 SIBP20S PHS20 SF20 FB-M20
Low stock
Price Break
10+
€30,31
19+
€28,60
29+
€28,26
39+
€27,92
49+
€27,58
74+
€27,24
99+
€25,54
199+
€25,20
249+
€24,86
499+
€24,52
999+
€23,84
Quantity
Couldn't load pickup availability
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h1 | 77mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 31.5 kN |
| Static load | 35.5 kN |
| dk | 34.9mm |
| d3 | 27.5mm |
| d4 max | 37mm |
| l3 min | 30mm |
| l4 max | 105mm |
| l5 | 10mm |
| l7 min | 25mm |
| r1 min | 0.3mm |
| w | 30mm |
| Weight | 0.4 kg |
