• Codex SIKAC25M Right Hand Steel / Bronze Lined Plain Female Rod End M24x2 Thread
1 1

SKU: SIKAC25M-CDX

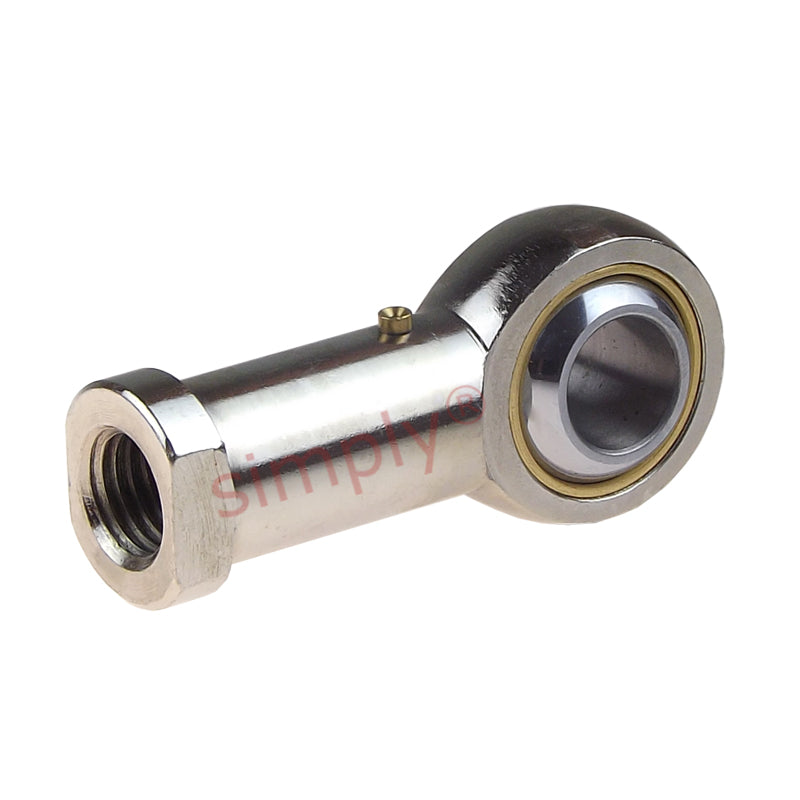

Codex SIKAC25M Right Hand Steel / Bronze Lined Plain Female Rod End M24x2 Thread

Codex SIKAC25M Right Hand Steel / Bronze Lined Plain Female Rod End M24x2 Thread
€55,08 ex VAT
€55,08 ex VAT
Sale Sold out

Equivalent to: GIKF25PB TSF25 SIBP25S PHS25 SF25 FB-M25

In stock

Price Break
10+ €41,86
19+ €39,51
29+ €39,04
39+ €38,56
49+ €38,09
74+ €37,62
99+ €35,27
199+ €34,80
249+ €34,33
499+ €33,86
999+ €32,92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SIKC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M24x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
25mm
Material:
Bronze Lined
Technical
d 25mm
d2 max 61mm
G M24x2
B 31mm
C1 max 22mm
h1 94mm
Max misalignment angle 15 degrees
Dynamic load 47.5 kN
Static load 53 kN
dk 42.8mm
d3 33.5mm
d4 max 44mm
l3 min 36mm
l4 max 127mm
l5 12mm
l7 min 30mm
r1 min 0.3mm
w 36mm
Weight 0.65 kg
