SKU: SIL15C-CDX

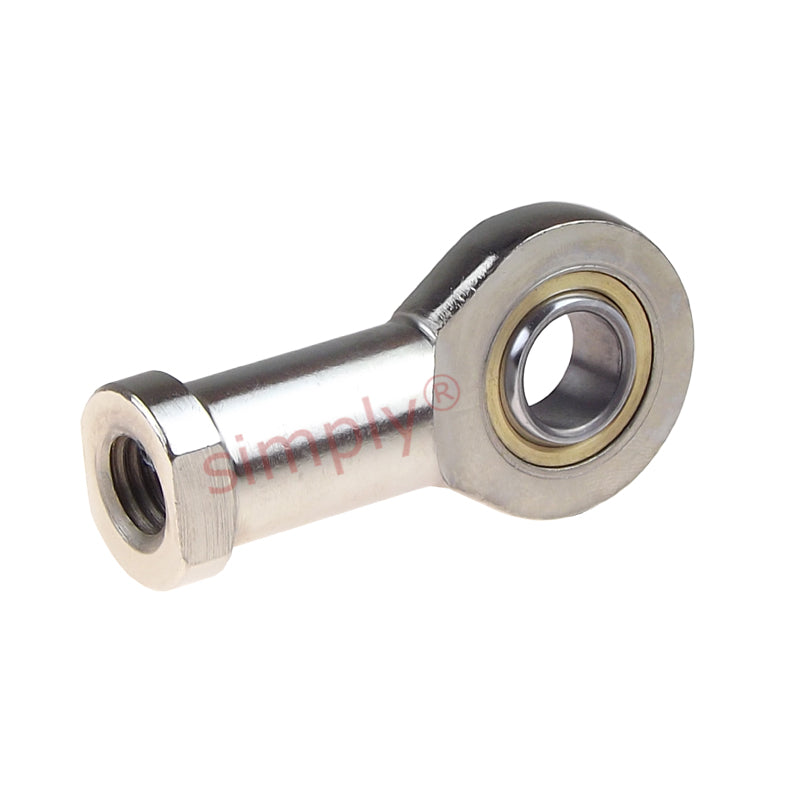

Codex SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
- Regular price
- €27.76 ex VAT
- Sale price
- €27,76
- Regular price
-
In stock
Quantity Price Breaks
10
€24.71
19
€23.32
29
€23.04
39
€22.76
49
€22.49
74
€22.21
99
€20.82
199
€20.54
249
€20.26
499
€19.99
999
€19.43
SKU:
SIL15C-CDX
Codex SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
- Regular price
- €27.76 ex VAT
- Sale price
- €27,76
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Technical
| d | = | 15mm |
| d2 max | = | 41mm |
| G | = | M14 |
| B | = | 12mm |
| C1 max | = | 10.5mm |
| h1 | = | 61mm |
| Max misalignment angle | = | 8 degrees |
| Dynamic load | = | 18 kN |
| Static load | = | 37.5 kN |
| dk | = | 22mm |
| d4 | = | 22mm |
| l3 min | = | 21mm |
| l4 max | = | 83mm |
| l5 | = | 14mm |
| l7 min | = | 19mm |
| r1 min | = | 0.3mm |
| w h14 | = | 19mm |
| Weight | = | 0.18 kg |
