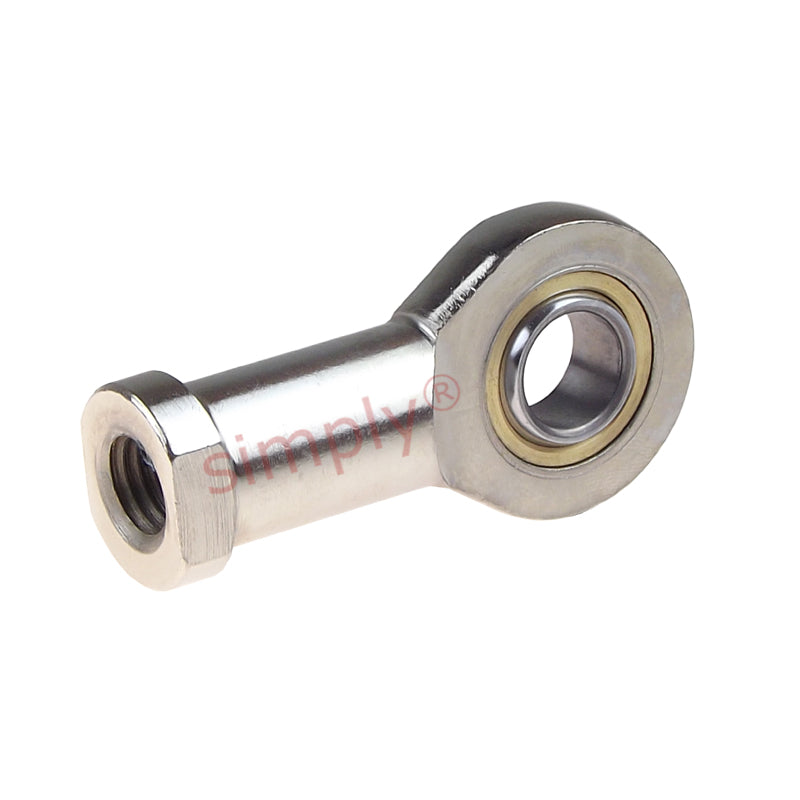

• Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
1 1

SKU: SIL20C-CDX

Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread

Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
€33,94 ex VAT
€33,94 ex VAT
Sale Sold out

Equivalent to: GIL20UK

In stock

Price Break
10+ €25,79
19+ €24,34
29+ €24,05
39+ €23,77
49+ €23,48
74+ €23,19
99+ €21,74
199+ €21,45
249+ €21,16
499+ €20,87
999+ €20,29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SLC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M20x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
20mm
Material:
PTFE Sintered Bronze Lined
Technical
d 20mm
d2 max 54mm
G M20x1.5
B 16mm
C1 max 13.5mm
h1 77mm
Max misalignment angle 9 degrees
Dynamic load 31.5 kN
Static load 57 kN
dk 29mm
d4 28mm
l3 min 30mm
l4 max 106mm
l5 16mm
l7 min 24mm
r1 min 0.3mm
w h14 24mm
Weight 0.35 kg
