SKU: SIL5E-ISB

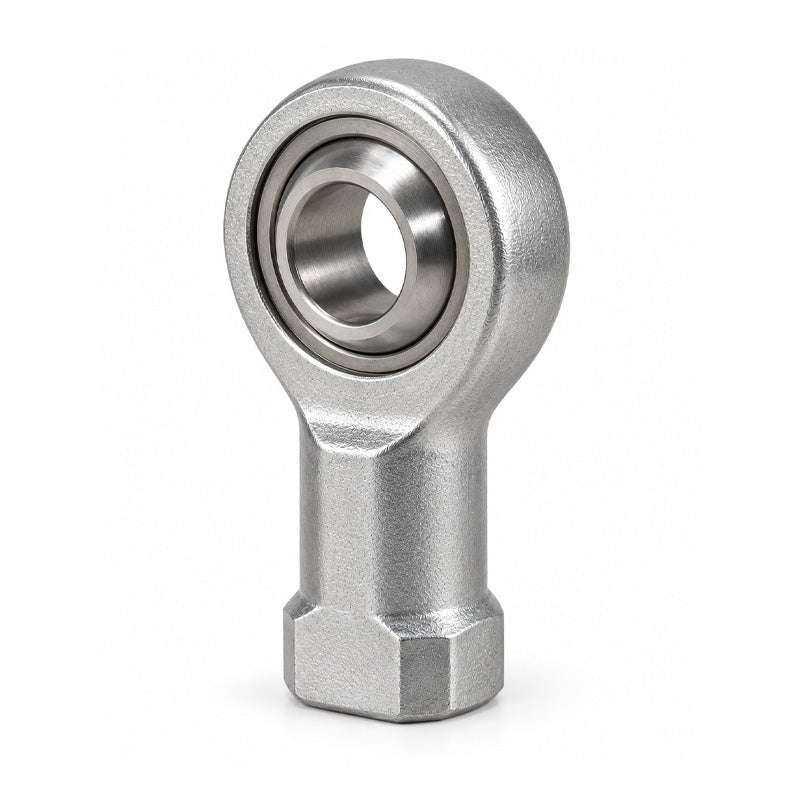

ISB SIL5E Left Hand Maintenance Free Steel/Steel Plain Female Rod End M5 Thread
ISB SIL5E Left Hand Maintenance Free Steel/Steel Plain Female Rod End M5 Thread
Equivalent to: SIL5E
Out of stock
Share this product
Description
Description
SI - SA Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Bore:
- 5
- Inside Diameter:
- 5
- Material:
- Steel/Steel

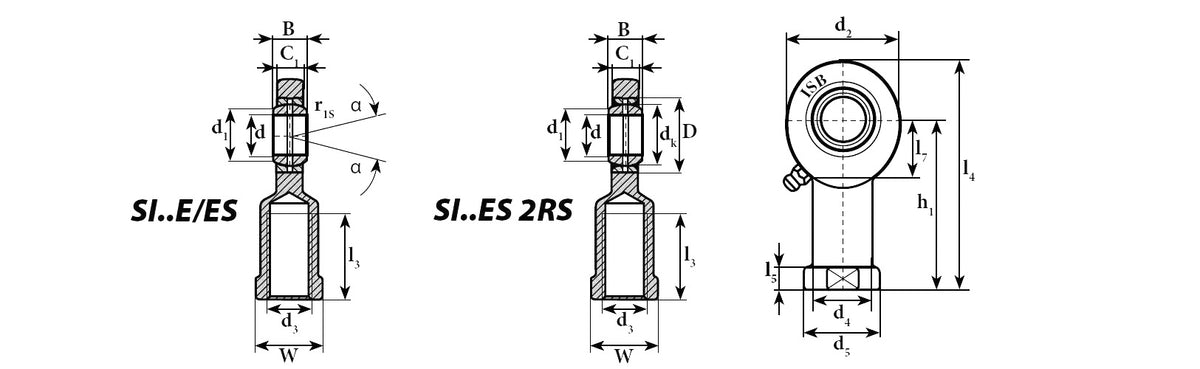

Technical
Technical
| d | 5mm |
|---|---|
| d1 | 7mm |
| d2 | 21mm |
| d3 | M 5x0.8mm |
| d4 | 10mm |
| d5 | 13mm |
| B | 6mm |
| C1 | 4.4mm |
| h1 | 30mm |
| W | 10mm |
| I3 | 11mm |
| I4 | 40.5mm |
| I5 | 5mm |
| α | 13° |
| r 1s min | 0.3Nmax Min -1 |
| Dynamic C | 3.4KN |
| Static C0 | 8.1KN |
| Weight | 0.016Kg |
