SKU: SIL6C-CDX

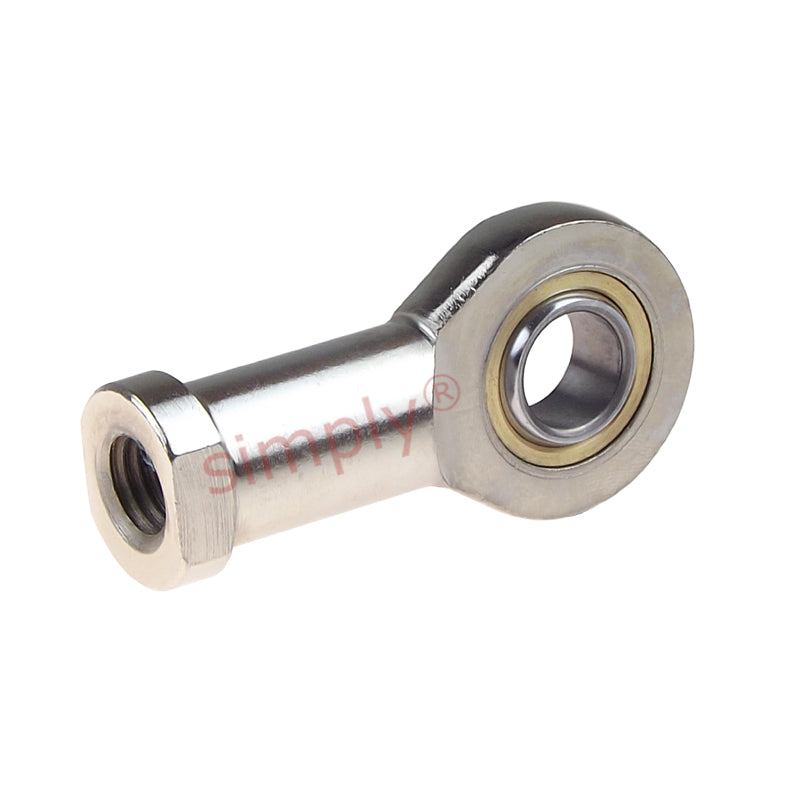

Codex SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
- Regular price
- €26.71 ex VAT
- Sale price
- €26,71
- Regular price
-
In stock
Quantity Price Breaks
10
€23.77
19
€22.44
29
€22.17
39
€21.90
49
€21.64
74
€21.37
99
€20.03
199
€19.77
249
€19.50
499
€19.23
999
€18.70
SKU:
SIL6C-CDX
Codex SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
- Regular price
- €26.71 ex VAT
- Sale price
- €26,71
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |

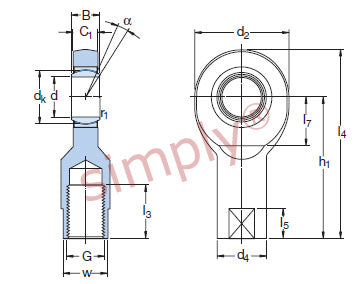

Technical
| d | = | 6mm |
| d2 max | = | 22mm |
| G | = | M6 |
| B | = | 6mm |
| C1 max | = | 4.5mm |
| h1 | = | 30mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 3.6 kN |
| Static load | = | 8.15 kN |
| dk | = | 10mm |
| d4 | = | 11mm |
| l3 min | = | 11mm |
| l4 max | = | 43mm |
| l5 | = | 8mm |
| l7 min | = | 10mm |
| r1 min | = | 0.3mm |
| w h14 | = | 9mm |
| Weight | = | 0.023 kg |
