SKU: SL071_IMP_NAK

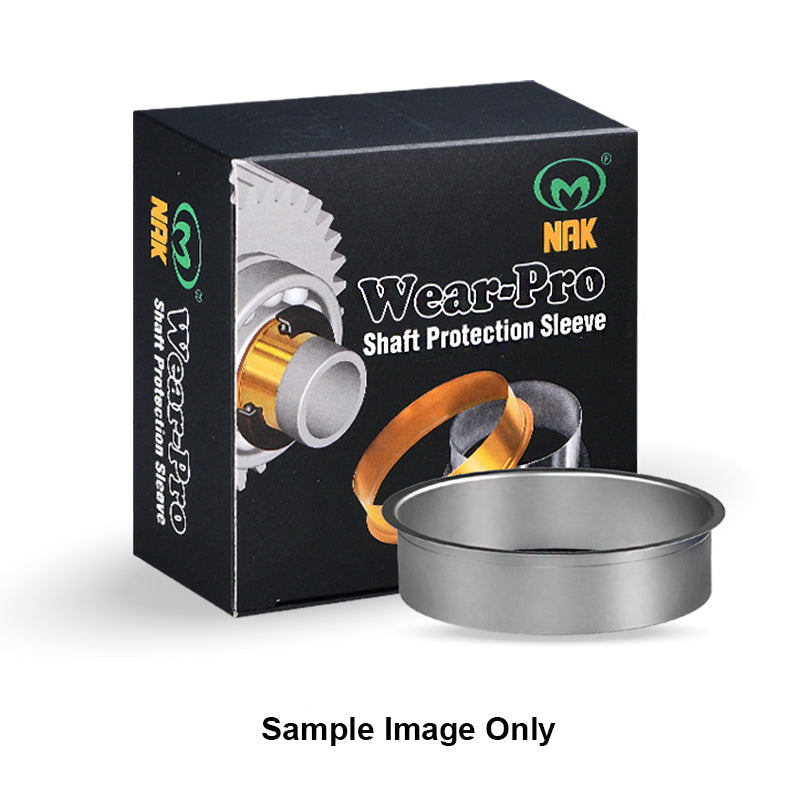

NAK SL071 Hardened Stainless Sleeve for Shafts 1.747-1.753 inch - Allow 7-10 Days
- Regular price
- €25.81 ex VAT
- Sale price
- €25,81
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€22.97
19
€21.68
29
€21.42
39
€21.16
49
€20.91
74
€20.65
99
€19.36
199
€19.10
249
€18.84
499
€18.58
999
€18.07
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical
| Shaft Diameter Range (A) | = | 1.747-1.753 inch |
| Nominal Shaft Diameter (A) | = | 1.75 inch |
| Flange Diameter (D) | = | 2.055 inch |
| Width on Shaft (X) | = | 0.374 inch |
| Overall Width (Y) | = | 0.5 inch |
| Installation Depth (Z) | = | 0.815 inch |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
