SKU: SL093_IMP_NAK

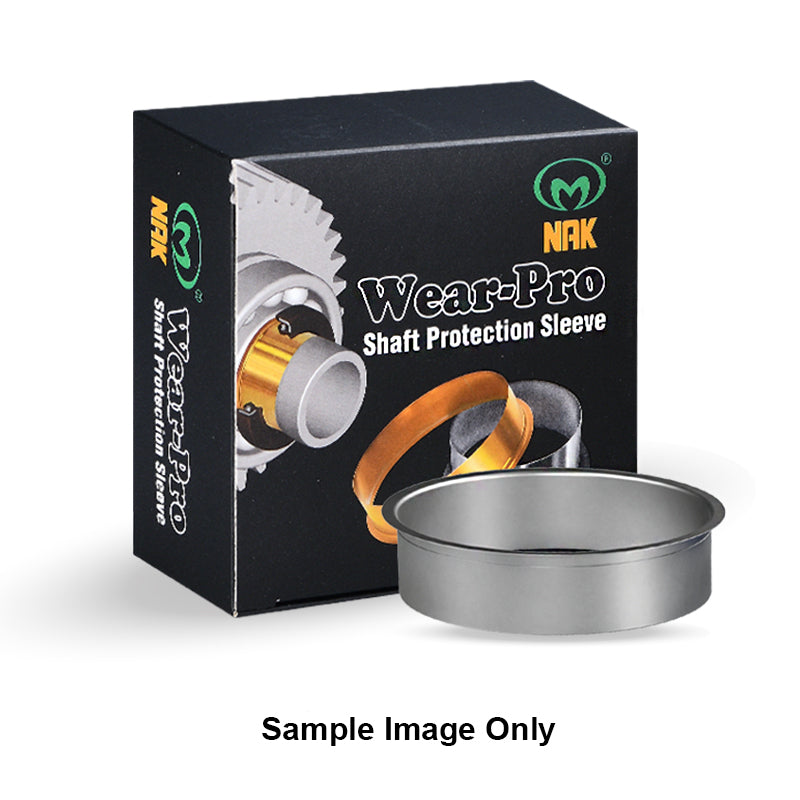

NAK SL093 Hardened Stainless Sleeve for Shafts 2.057-2.063 inch - Allow 7-10 Days
NAK SL093 Hardened Stainless Sleeve for Shafts 2.057-2.063 inch - Allow 7-10 Days
Regular price
€28,48
ex VAT
Regular price
Sale price
€28,48
ex VAT
Equivalent to: CR99205
In stock
Price Break
10+
€21,69
19+
€20,47
29+
€20,23
39+
€19,98
49+
€19,74
74+
€19,49
99+
€18,28
199+
€18,03
249+
€17,79
499+
€17,54
999+
€17,06
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99205
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.937 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 2.063 inch
- Flange Diameter:
- 2.469 inch
Technical
Technical
| Shaft Diameter Range (A) | 2.057-2.063 inch |
|---|---|
| Nominal Shaft Diameter (A) | 2.063 inch |
| Flange Diameter (D) | 2.469 inch |
| Width on Shaft (X) | 0.78 inch |
| Overall Width (Y) | 0.937 inch |
| Installation Depth (Z) | 1.374 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
