SKU: SL131_IMP_NAK

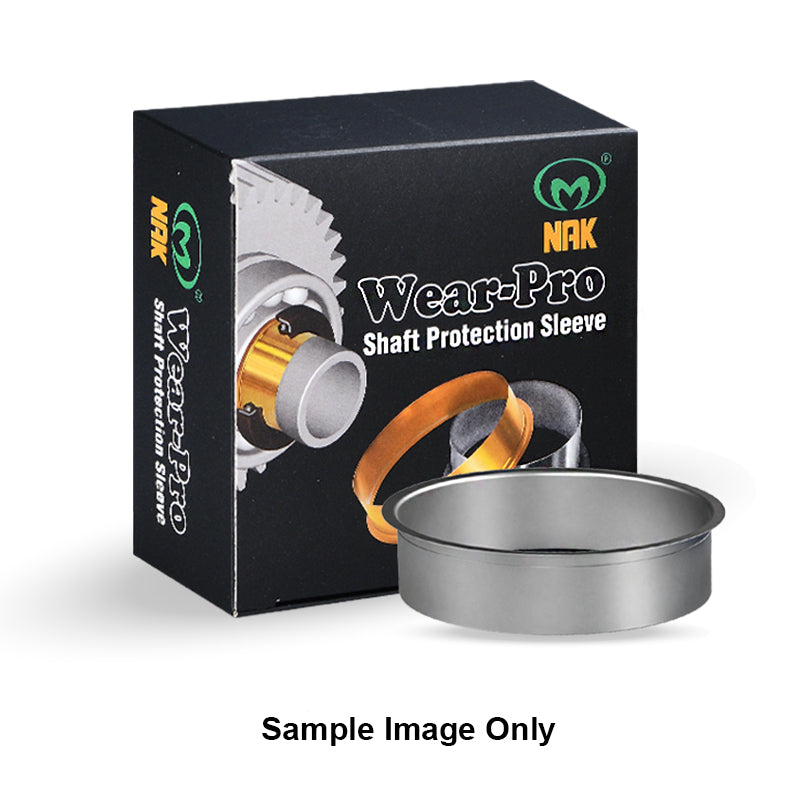

NAK SL131 Hardened Stainless Sleeve for Shafts 2.750-2.756 inch - Allow 7-10 Days
NAK SL131 Hardened Stainless Sleeve for Shafts 2.750-2.756 inch - Allow 7-10 Days
Regular price
€34,09
ex VAT
Regular price
Sale price
€34,09
ex VAT
Equivalent to: CR99269
In stock
Price Break
10+
€25,91
19+
€24,46
29+
€24,16
39+
€23,87
49+
€23,58
74+
€23,29
99+
€21,84
199+
€21,54
249+
€21,25
499+
€20,96
999+
€20,38
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1.252 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 2.75 inch
- Flange Diameter:
- 3.126 inch
Technical
Technical
| Shaft Diameter Range (A) | 2.750-2.756 inch |
|---|---|
| Nominal Shaft Diameter (A) | 2.75 inch |
| Flange Diameter (D) | 3.126 inch |
| Width on Shaft (X) | 1.126 inch |
| Overall Width (Y) | 1.252 inch |
| Installation Depth (Z) | 1.311 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
