SKU: SL174_IMP_NAK

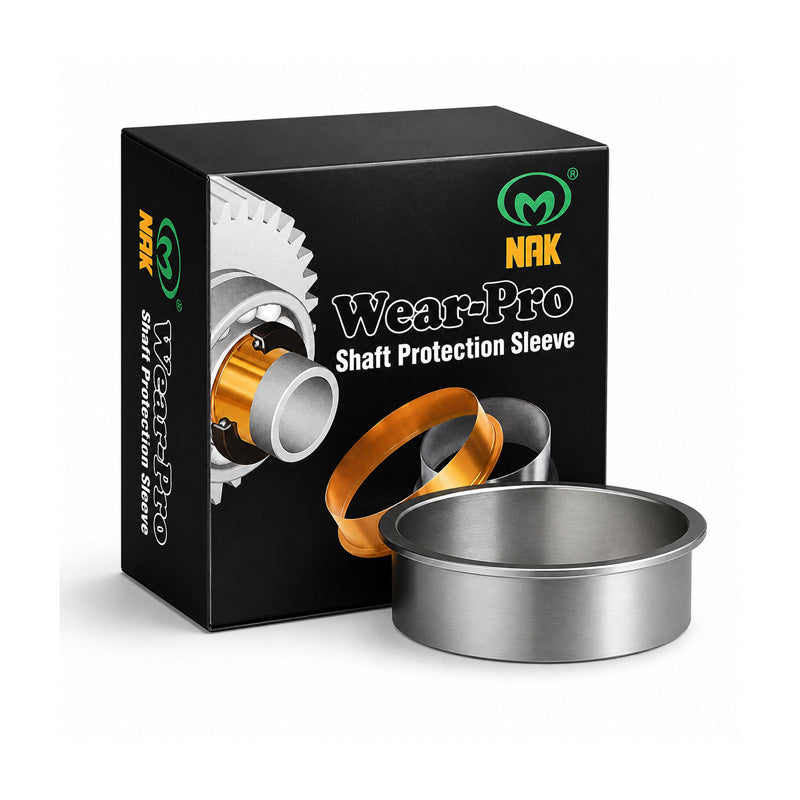

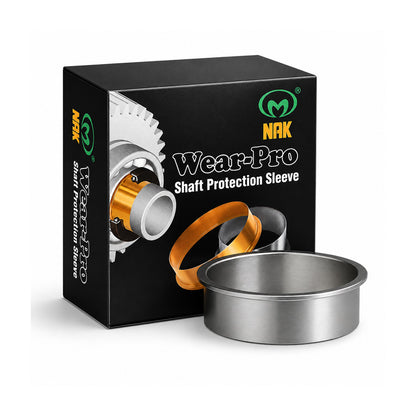

NAK SL174 Hardened Stainless Sleeve for Shafts 3.500-3.506 inch - Allow 7-10 Days
NAK SL174 Hardened Stainless Sleeve for Shafts 3.500-3.506 inch - Allow 7-10 Days
Regular price
€34,09
ex VAT
Regular price
Sale price
€34,09
ex VAT
Equivalent to: CR99347
In stock
Price Break
10+
€25,91
19+
€24,46
29+
€24,16
39+
€23,87
49+
€23,58
74+
€23,29
99+
€21,84
199+
€21,54
249+
€21,25
499+
€20,96
999+
€20,38
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.5 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.5 inch
- Flange Diameter:
- 3.827 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.500-3.506 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.5 inch |
| Flange Diameter (D) | 3.827 inch |
| Width on Shaft (X) | 0.315 inch |
| Overall Width (Y) | 0.5 inch |
| Installation Depth (Z) | 1.346 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
