SKU: SL180_IMP_NAK

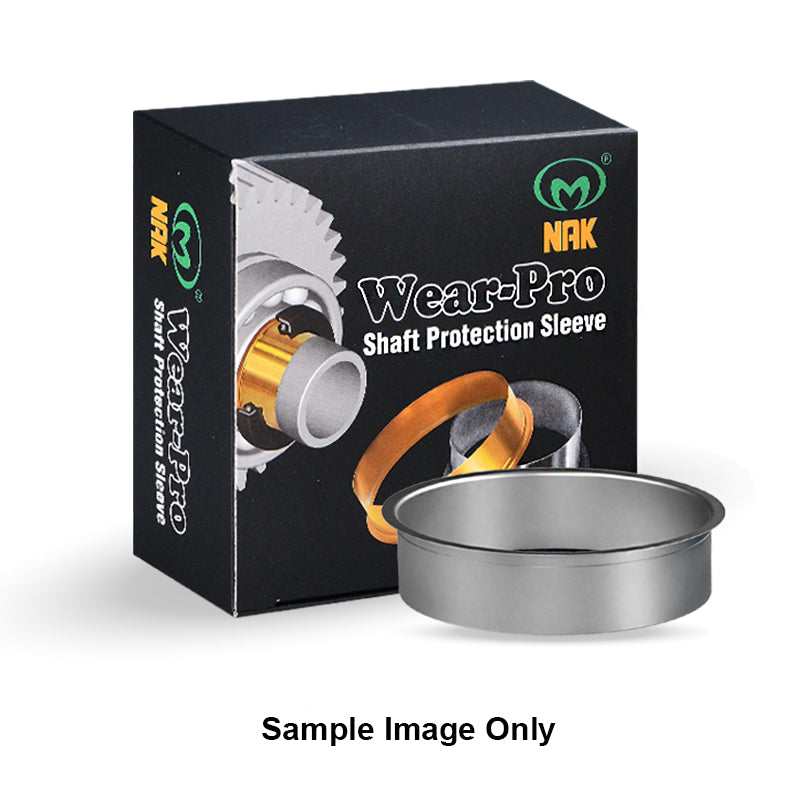

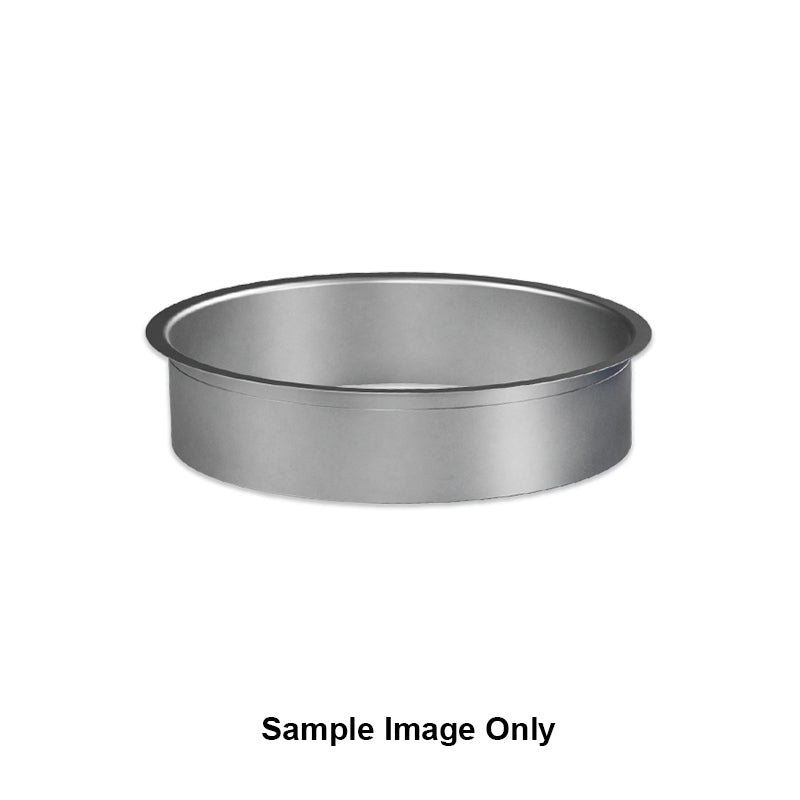

NAK SL180 Hardened Stainless Sleeve for Shafts 3.540-3.546 inch - Allow 7-10 Days
NAK SL180 Hardened Stainless Sleeve for Shafts 3.540-3.546 inch - Allow 7-10 Days
Regular price
€41,52
ex VAT
Regular price
Sale price
€41,52
ex VAT
Equivalent to: CR99354
In stock
Price Break
10+
€31,55
19+
€29,77
29+
€29,42
39+
€29,07
49+
€28,71
74+
€28,36
99+
€26,58
199+
€26,23
249+
€25,88
499+
€25,52
999+
€24,81
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1.102 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.543 inch
- Flange Diameter:
- 4 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.540-3.546 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.543 inch |
| Flange Diameter (D) | 4 inch |
| Width on Shaft (X) | 0.906 inch |
| Overall Width (Y) | 1.102 inch |
| Installation Depth (Z) | 1.752 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
