SKU: SLC2.3/8DEC-RHP

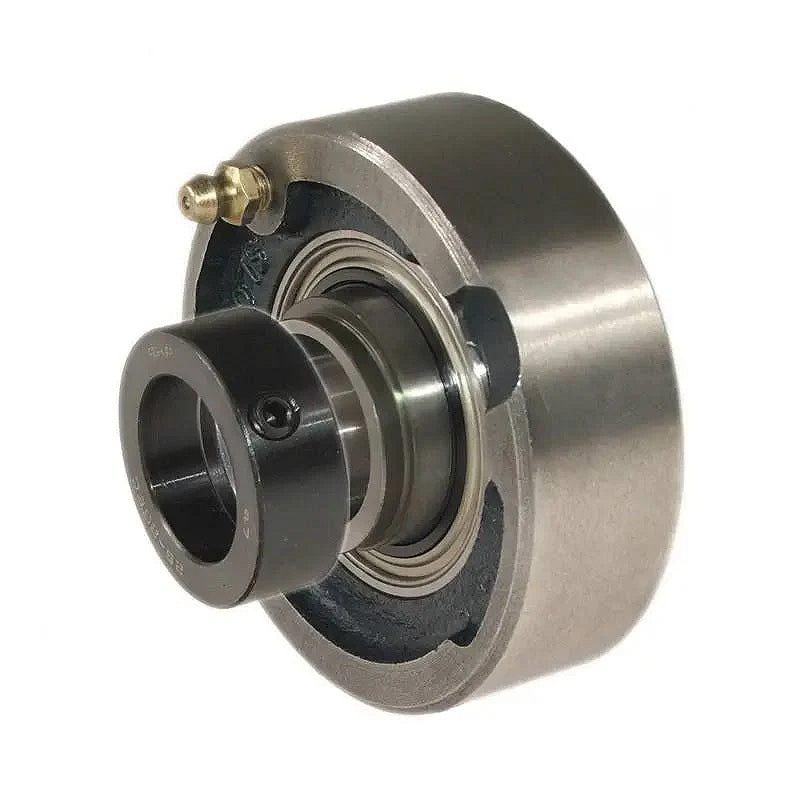

RHP SLC2-3/8DEC Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter

RHP SLC2-3/8DEC Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-3/8 inch
L 5.876 inch
A 1.625 inch
A3 2.653 inch
B3 3.064 inch
s2 1.221 inch
d2 3.312 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 4.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-3/8DECG+insonly">1060-2-3/8DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
