SKU: SLC25A-RHP
RHP SLC25A Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
- Regular price
- €43.07 ex VAT
- Sale price
- €43,07
- Regular price
-
Quantity Price Breaks
RHP SLC25A Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
- Regular price
- €43.07 ex VAT
- Sale price
- €43,07
- Regular price
-
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |

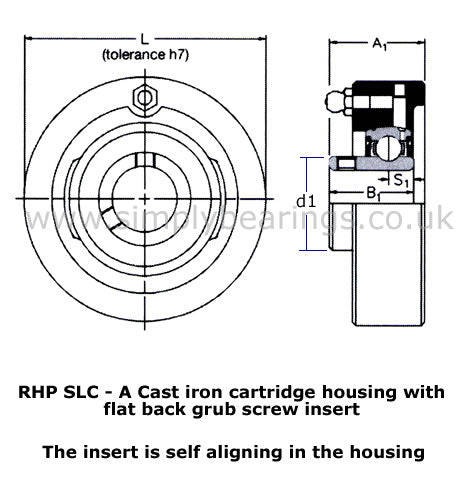

Technical
| Bore | = | 25mm |
| L | = | 79.4mm |
| A | = | 26.19mm |
| A1 | = | 32.94mm |
| A2 | = | 36.52mm |
| A3 | = | 40.06mm |
| B | = | 34.11mm |
| B1 | = | 27.35mm |
| B2 | = | 30.92mm |
| B3 | = | 44.4mm |
| s | = | 14.32mm |
| s1 | = | 7.56mm |
| s2 | = | 17.49mm |
| d1 | = | 34.01mm |
| d2 | = | 38.1mm |
| Dynamic load Cr | = | 14000 N |
| Static load Cor | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1225-25AG+insonly" |
| > | = | 1225-25AG Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
