SKU: SM-UCF201D1-NTN

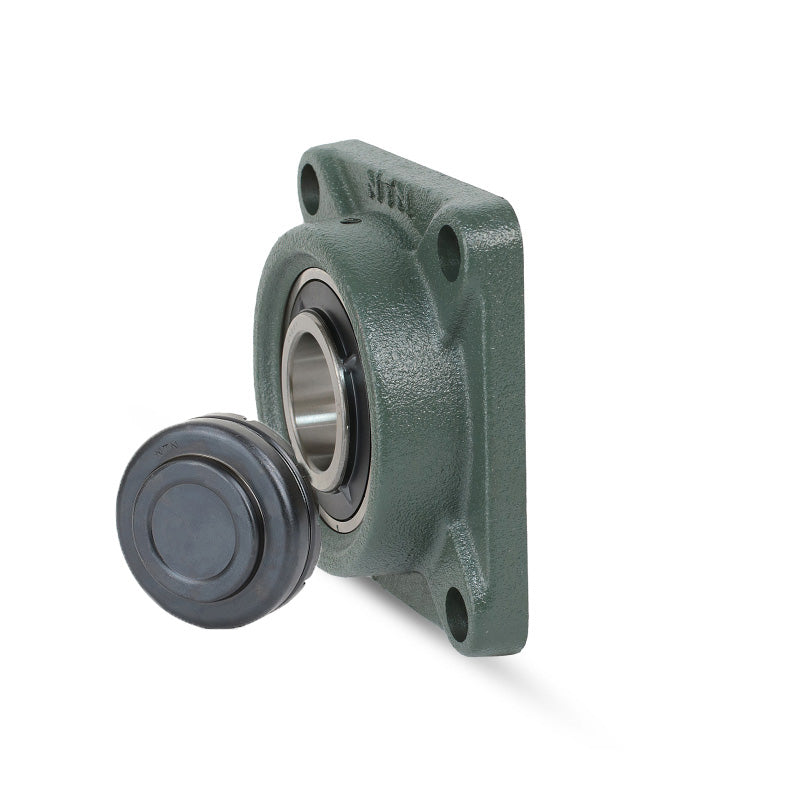

NTN SM-UCF201D1 Metric Four Bolt Square Cast Iron Flange Housing with 12mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCF201D1 Metric Four Bolt Square Cast Iron Flange Housing with 12mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| L | 86mm |
| J | 64mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 11mm |
| A | 25.5mm |
| N | 12mm |
| B | 31mm |
| S | 12.7mm |
| t<sub>1</sub> | 5mm |
| A<sub>4</sub> | 40.5mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.6 kg |
