SKU: SM-UCFC207D1-NTN
NTN SM-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38.80
4
€36.62
9
€36.19
19
€35.75
49
€35.32
99
€34.88
499
€32.70
999
€32.26
1999
€31.83
2999
€31.39
4999
€30.52
SKU:
SM-UCFC207D1-NTN
NTN SM-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

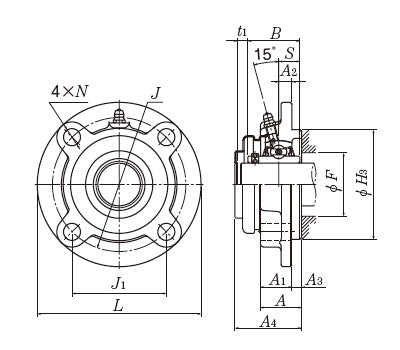

| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| L | = | 135mm |
| J | = | 110mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 77.8mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 11mm | |
| N | = | 14mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 8mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 26mm | |
| A | = | 34mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 90mm | |
| B | = | 42.9mm |
| S | = | 17.5mm |
| t< | = | sub> |
| 1< | = | /sub> |
| = | 8mm | |
| A< | = | sub> |
| 4< | = | /sub> |
| = | 55mm | |
| Fixing bolt | = | M12 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 28.4 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 15.3 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.09 kN | |
| --- | = | Unit information |
| Mass | = | 1.7 kg |
