SKU: SM16-2-MB
Major Branded SM16-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- €43.91 ex VAT
- Sale price
- €43,91
- Regular price
-
Not in stock
Quantity Price Breaks
3
€39.08
5
€36.88
9
€36.45
19
€36.01
49
€35.57
74
€35.13
99
€32.93
199
€32.49
249
€32.05
499
€31.62
999
€30.74
SKU:
SM16-2-MB
Major Branded SM16-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- €43.91 ex VAT
- Sale price
- €43,91
- Regular price
-
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
Technical

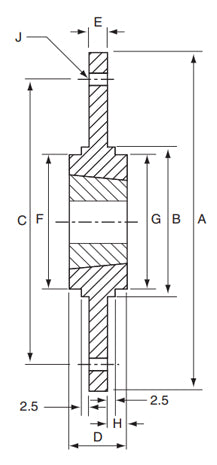

| Hub Reference | = | SM16-2 |
| Bush Number | = | 1615 |
| A | = | 200mm |
| B | = | 110mm |
| C | = | 150mm |
| D | = | 38mm |
| E | = | 7.5mm |
| F/G | = | 90mm |
| H | = | 15.25mm |
| J | = | 6x7.5mm |
