SKU: SNLN3024-SKF

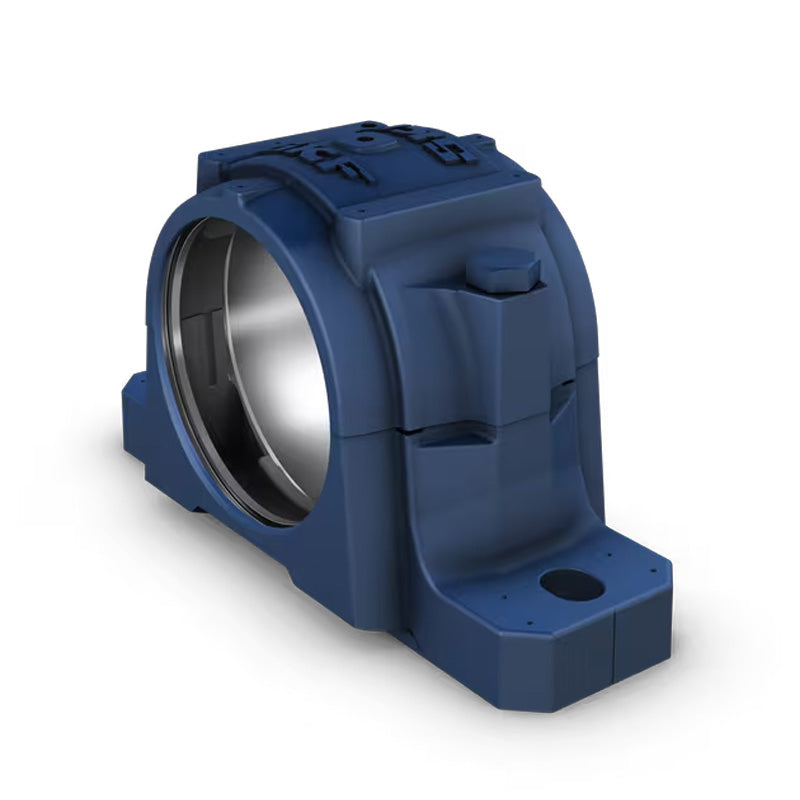

SKF SNLN3024 Cast Iron Split Pillow Block Housing
SKF SNLN3024 Cast Iron Split Pillow Block Housing
Regular price
€573,16
ex VAT
Regular price
Sale price
€573,16
ex VAT
In stock
Price Break
4+
€435,57
9+
€411,10
19+
€406,21
29+
€401,31
39+
€396,42
49+
€391,52
59+
€367,05
69+
€362,16
79+
€357,27
89+
€352,37
99+
€342,58
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 320mm

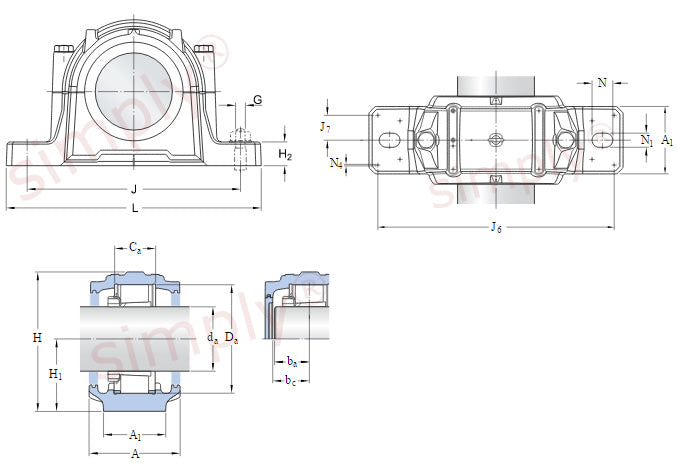

Technical
Technical
| da | 110mm |
|---|---|
| Ca | 70mm |
| Da | 180mm |
| A | 160mm |
| A1 | 110mm |
| H | 218mm |
| H1 | 112mm |
| H2 | 40mm |
| J | 320mm |
| L | 380mm |
| N | 32mm |
| N1 | 26mm |
| J6 | 348mm |
| J7 | 39mm |
| N4 max | 8mm |
| ba | 48mm |
| bc | 70mm |
