SKU: SONL222-522-SKF

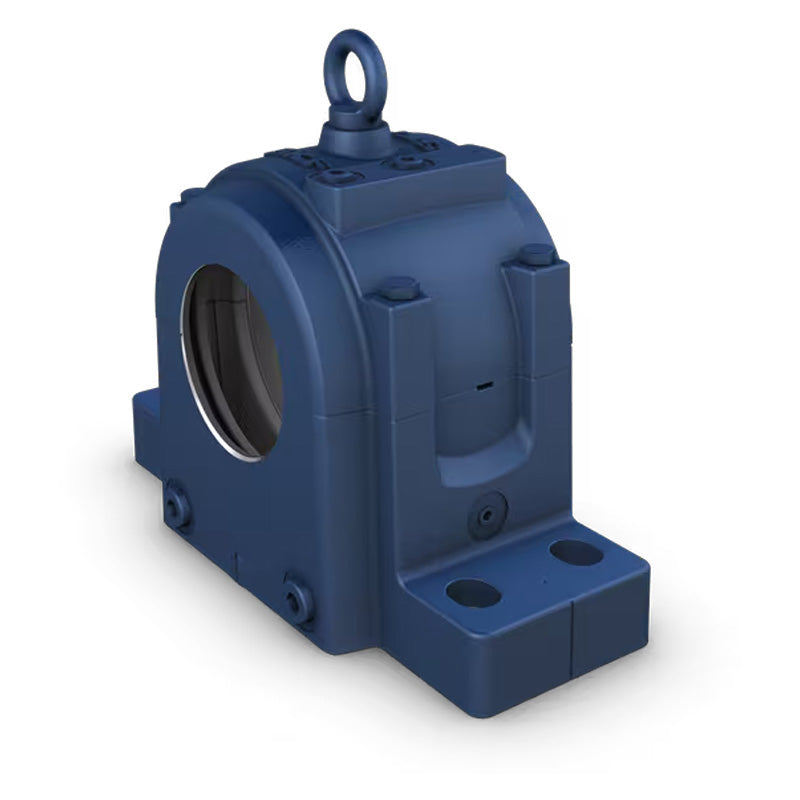

SKF SONL222-522 Cast Iron Split Pillow Block Housing
SKF SONL222-522 Cast Iron Split Pillow Block Housing
Regular price
€2.511,85
ex VAT
Regular price
Sale price
€2.511,85
ex VAT
In stock
Price Break
4+
€1.908,89
9+
€1.801,65
19+
€1.780,20
29+
€1.758,75
39+
€1.737,30
49+
€1.715,85
59+
€1.608,61
69+
€1.587,17
79+
€1.565,72
89+
€1.544,27
99+
€1.501,37
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 347mm
Technical
Technical
| da | 100mm |
|---|---|
| Ca | 71mm |
| Da | 200mm |
| A | 213mm |
| A1 | 145mm |
| A2 | 163mm |
| AA | 221mm |
| AB | 229mm |
| d1 | 120mm |
| B1 | 88mm |
| H | 290mm |
| H0 | 343mm |
| H1 | 160mm |
| H2 | 50mm |
| J | 347mm |
| J1 | 75mm |
| L | 420mm |
| N | 32mm |
| N1 | 26mm |
| S | 114.5mm |
| PG | G 3/8 |
| P1 | 55mm |
| P2 | 53mm |
| RG | G 3/4 |
| R1 | 162mm |
| R2 | 23mm |
| O1 | 98mm |
| O2 | 163mm |
| J6 | 370mm |
| N4 max | 8mm |
| ba | 52mm |
| bb | 167mm |
| s2 | 32.5mm |
| Weight | 53 kg |
