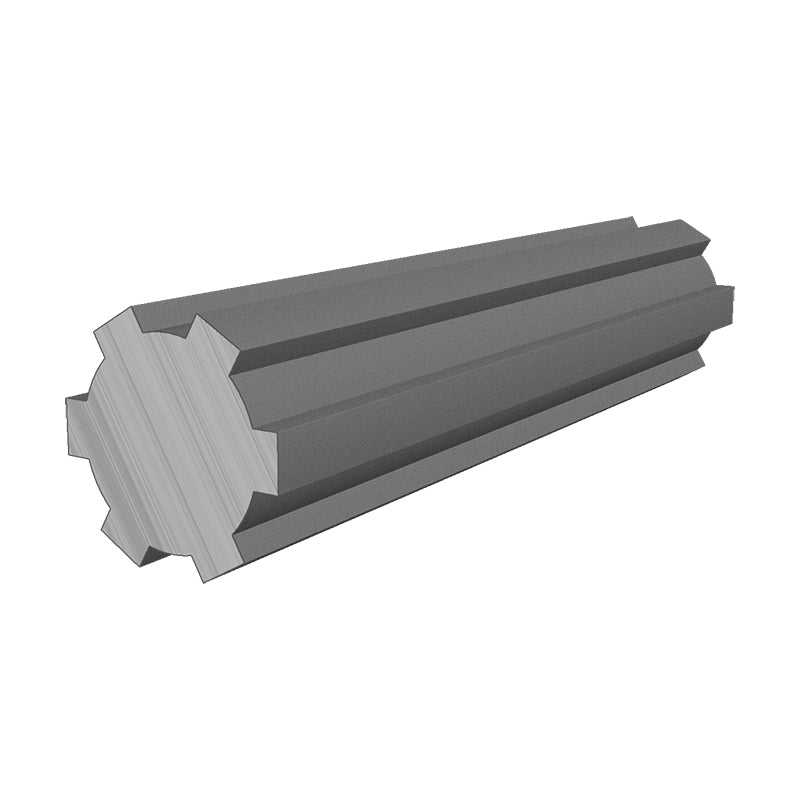

Major Brand SPS16X13X3.5/1 Metric Steel Splined Shaft with 6 Splines 13x16x1000mm - Allow 2-3 Days

Metric Steel Splined Shafts: Splined shafts are essential components in producing various machinery and industrial applications, known for their ridged structure that ensures efficient torque transfer and high rotation speed handling. Available in multiple lengths and diameters. These shafts are manufactured from high-quality carbon steel. Also, these shafts feature evenly spaced grooves that fit into matched splined bushes, providing reliable and smooth motion. Splined bushes are available separately. The design of these shafts helps to maintain, uniform and controlled torque while reducing part misalignment, making them ideal for high-torsional force applications. Commonly used in manufacturing, automotive, aviation, and earth-moving machinery, regular cleaning, and lubrication are crucial for maintaining their functionality and extending their lifespan. Can be supplied in lengths up to 3000mm upon request.
Benefits: High-quality, durable material, enhanced load capacity

Brand / Quality:

Simply Splined Shaft

Inside Diameter:

13mm

Outside Diameter:

16mm

Length:

1000mm

Style:

6 Splines
