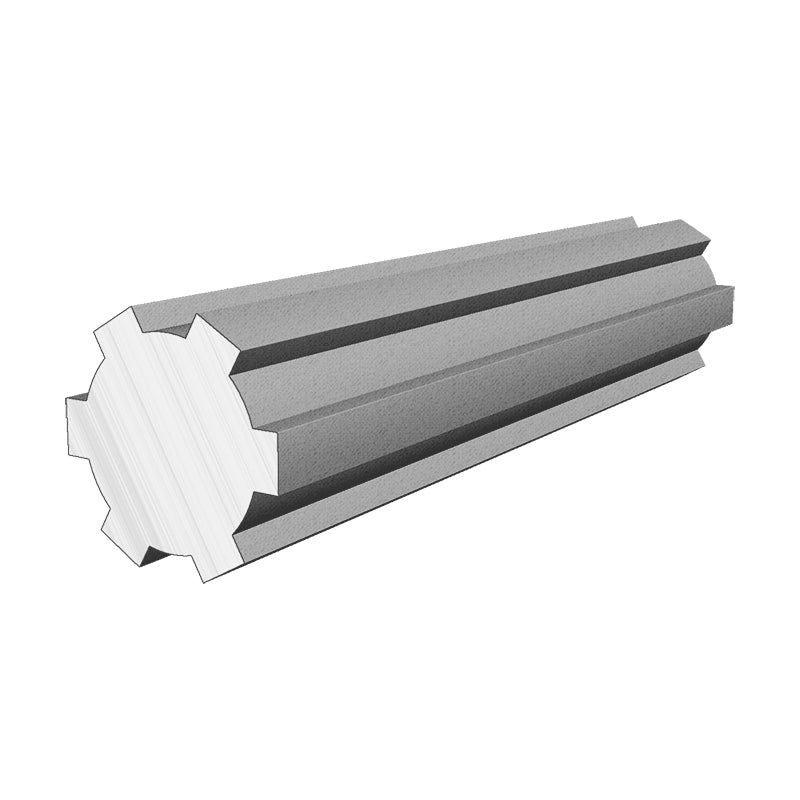

• Major Brand SPSST14X11X3/1 Metric Stainless Steel Splined Shaft with 6 Splines 11x14x1000mm - Allow 2-3 Days
1 1

SKU: SPSST14X11X3/1

Major Brand SPSST14X11X3/1 Metric Stainless Steel Splined Shaft with 6 Splines 11x14x1000mm - Allow 2-3 Days

Major Brand SPSST14X11X3/1 Metric Stainless Steel Splined Shaft with 6 Splines 11x14x1000mm - Allow 2-3 Days
€85,87 ex VAT
€85,87 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,25
5+ €61,59
9+ €60,86
19+ €60,12
49+ €59,39
74+ €58,66
99+ €54,99
199+ €54,26
249+ €53,52
499+ €52,79
999+ €51,32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ZMDOA12GNB
Brand / Quality:
Simply Splined Shaft
Inside Diameter:
11mm
Outside Diameter:
14mm
Length:
1000mm
Style:
6 Splines
Technical
Number of Splines 6
D 14mm
d 11mm
c 3mm
Length 1000mm
Sm. 45 Deg 0.2mm
r 0.2mm
D Tolerance -0.07mm to -0.2mm
d Tolerance 0mm to -0.08mm
c Tolerance -0.03mm to -0.08mm
Linear Straightness Tolerance 0.8mm / 1000mm
Torsional Straightness Tolerance 0.5mm / 1000mm
Material Stainless Steel Aisi 304 (1:4301)
Weight Kg/m 0.949 Kg/m
