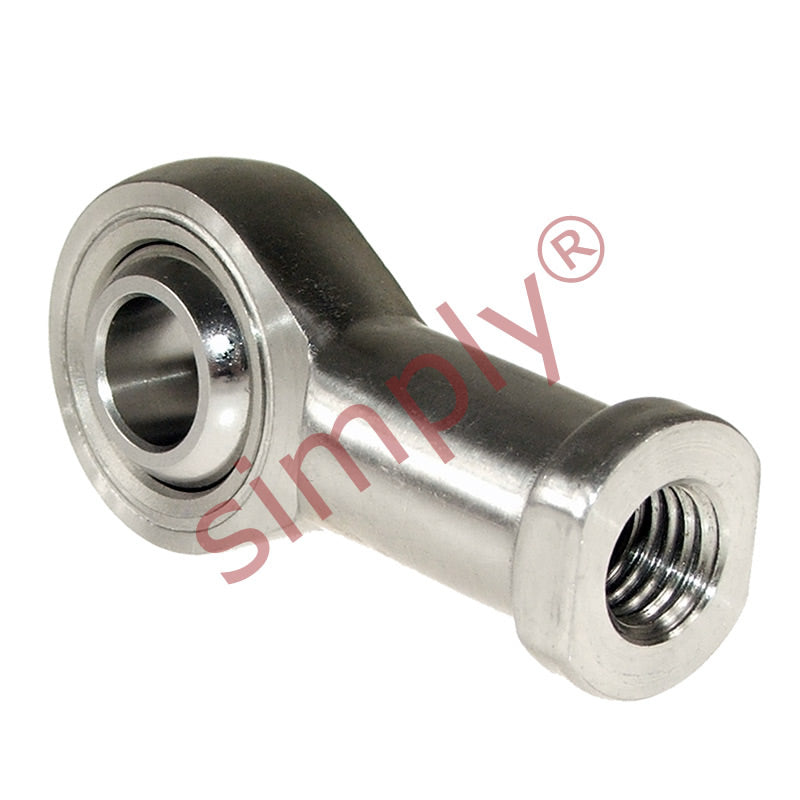

Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread

Name: Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Brand: Gen
SKU: SS.PHS18.EU
Price: 53.38 EUR
Availability: InStock

€53,38 ex VAT

Sale Sold out

In stock

Price Break

10+ €40,57

19+ €38,29

29+ €37,83

39+ €37,38

49+ €36,92

74+ €36,47

99+ €34,19

199+ €33,73

249+ €33,27

499+ €32,82

999+ €31,91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M18x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 18mm
Material:: PTFE Lined

Technical

d	18mm
B	23mm
r1	0.6mm
C1	16.5mm
d1 max	21.8mm
d2	42mm
d3	M18x1.5
h1	71mm
L3	36mm
L4	92mm
L5	10mm
d4	25mm
d5	31mm
S	27mm
Ball diameter	1-1/4 inch
Dynamic load Cr	26.2mm
Static load Cor	30.8mm
Max angle α	15
Weight	0.295 kg
