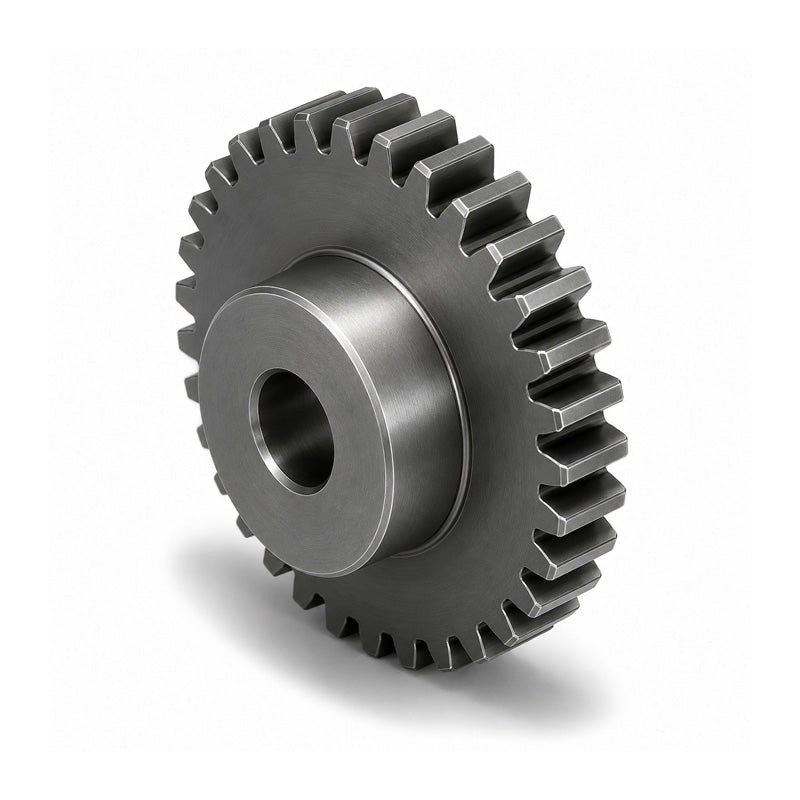

• SS20DP/24B-0.375 Imperial EN8 Steel Spur Gear 24 Tooth 20 DP Bored 0.375 inch (H8)
1 1

SKU: SS20DP/24B-0.375_INCH

SS20DP/24B-0.375 Imperial EN8 Steel Spur Gear 24 Tooth 20 DP Bored 0.375 inch (H8)

SS20DP/24B-0.375 Imperial EN8 Steel Spur Gear 24 Tooth 20 DP Bored 0.375 inch (H8)
€52,67 ex VAT
€52,67 ex VAT
Sale Sold out

In stock

Price Break
5+ €40,02
9+ €37,78
19+ €37,33
29+ €36,88
49+ €36,43
74+ €35,98
99+ €33,73
199+ €33,28
249+ €32,83
499+ €32,38
999+ €31,48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GEAR_IMP_S_DESC
Brand / Quality:
Drive-Flex - High Quality
Bore:
9.53mm = 0.375 (3/8) inch
Number of Teeth:
24
Variant:
Tooth Profile B
Pitch Circle Diameter:
30.48mm = 1.2 inch
Gear Modulus:
20DP
Technical
Number of Teeth 24
Pitch (dp) 1.2 inch
Bore (H8) 0.375 inch
Hub / Boss (dm) 0.75 inch
Outside (de) 1.3 inch
Width (A) 0.75 inch
Face Width (B) 0.375 inch
Modulus / Diametral Pitch DP 20 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
