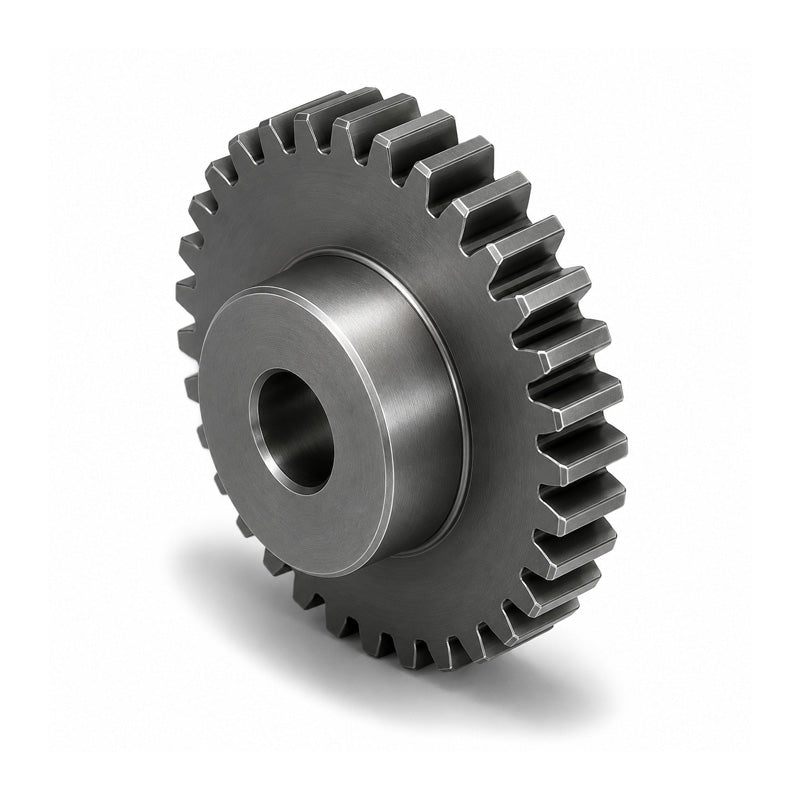

• SS20DP/30B-0.375 Imperial EN8 Steel Spur Gear 30 Tooth 20 DP Bored 0.375 inch (H8)
1 1

SKU: SS20DP/30B-0.375_INCH

SS20DP/30B-0.375 Imperial EN8 Steel Spur Gear 30 Tooth 20 DP Bored 0.375 inch (H8)

SS20DP/30B-0.375 Imperial EN8 Steel Spur Gear 30 Tooth 20 DP Bored 0.375 inch (H8)
€58,70 ex VAT
€58,70 ex VAT
Sale Sold out

In stock

Price Break
5+ €44,61
9+ €42,10
19+ €41,60
29+ €41,10
49+ €40,60
74+ €40,10
99+ €37,59
199+ €37,09
249+ €36,59
499+ €36,09
999+ €35,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GEAR_IMP_S_DESC
Brand / Quality:
Drive-Flex - High Quality
Bore:
9.53mm = 0.375 (3/8) inch
Number of Teeth:
30
Variant:
Tooth Profile B
Pitch Circle Diameter:
38.1mm = 1.5 (1-1/2) inch
Gear Modulus:
20DP
Technical
Number of Teeth 30
Pitch (dp) 1.5 inch
Bore (H8) 0.375 inch
Hub / Boss (dm) 0.75 inch
Outside (de) 1.6 inch
Width (A) 0.75 inch
Face Width (B) 0.375 inch
Modulus / Diametral Pitch DP 20 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
