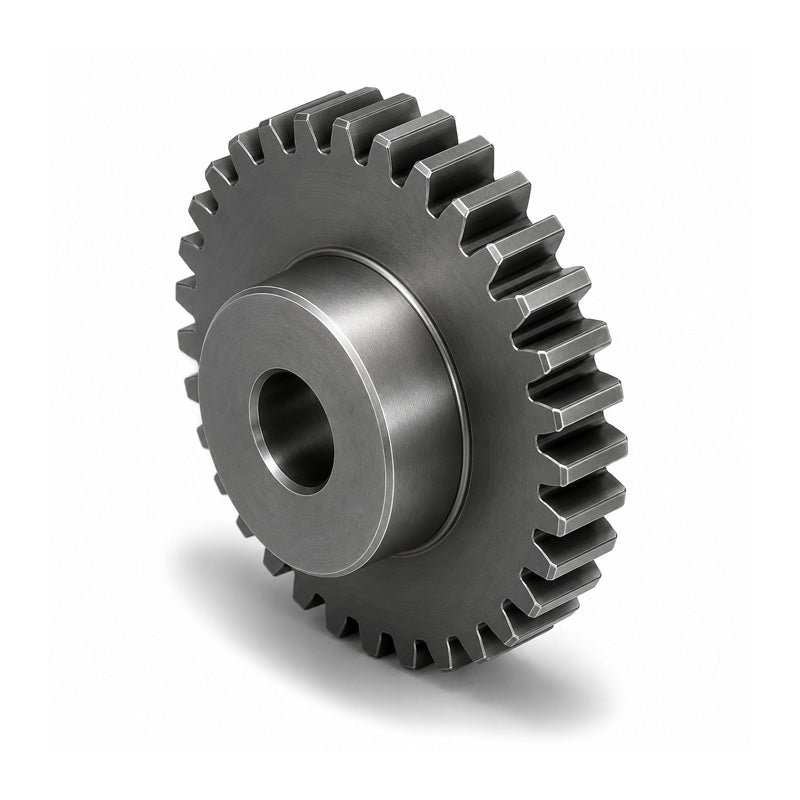

• SS20DP/35B-0.5 Imperial EN8 Steel Spur Gear 35 Tooth 20 DP Bored 0.5 inch (H8)
1 1

SKU: SS20DP/35B-0.5_INCH

SS20DP/35B-0.5 Imperial EN8 Steel Spur Gear 35 Tooth 20 DP Bored 0.5 inch (H8)

SS20DP/35B-0.5 Imperial EN8 Steel Spur Gear 35 Tooth 20 DP Bored 0.5 inch (H8)
€64,58 ex VAT
€64,58 ex VAT
Sale Sold out

In stock

Price Break
5+ €49,07
9+ €46,31
19+ €45,76
29+ €45,21
49+ €44,66
74+ €44,11
99+ €41,35
199+ €40,80
249+ €40,25
499+ €39,70
999+ €38,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GEAR_IMP_S_DESC
Brand / Quality:
Drive-Flex - High Quality
Bore:
12.7mm = 0.5 (1/2) inch
Number of Teeth:
35
Variant:
Tooth Profile B
Pitch Circle Diameter:
44.45mm = 1.75 (1-3/4) inch
Gear Modulus:
20DP
Technical
Number of Teeth 35
Pitch (dp) 1.75 inch
Bore (H8) 0.5 inch
Hub / Boss (dm) 1 inch
Outside (de) 1.85 inch
Width (A) 1 inch
Face Width (B) 0.375 inch
Modulus / Diametral Pitch DP 20 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
