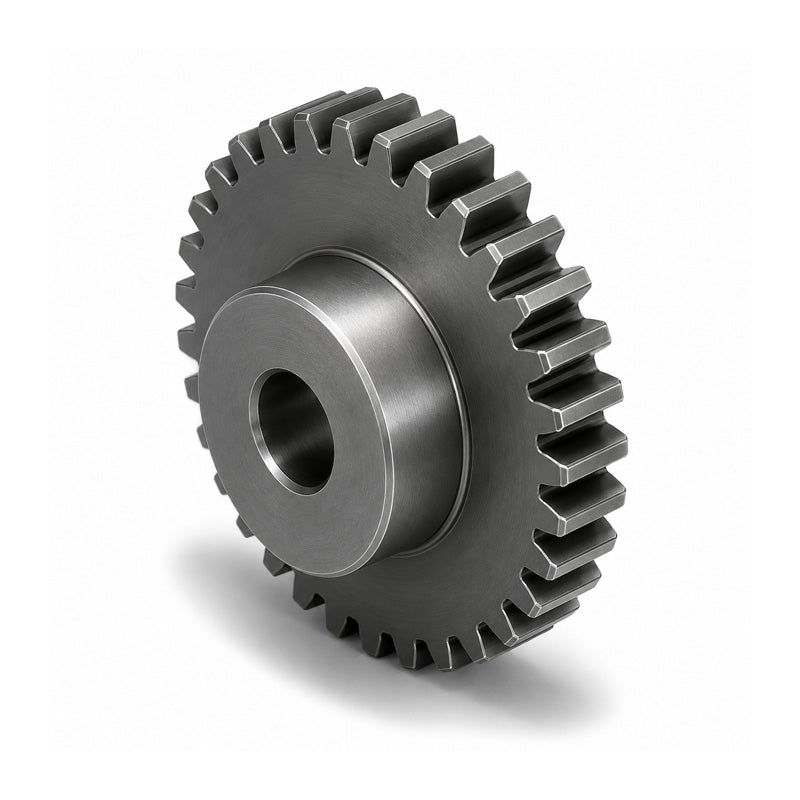

• SS20DP/40B-0.5 Imperial EN8 Steel Spur Gear 40 Tooth 20 DP Bored 0.5 inch (H8)
1 1

SKU: SS20DP/40B-0.5_INCH

SS20DP/40B-0.5 Imperial EN8 Steel Spur Gear 40 Tooth 20 DP Bored 0.5 inch (H8)

SS20DP/40B-0.5 Imperial EN8 Steel Spur Gear 40 Tooth 20 DP Bored 0.5 inch (H8)
€70,44 ex VAT
€70,44 ex VAT
Sale Sold out

In stock

Price Break
5+ €53,53
9+ €50,52
19+ €49,92
29+ €49,32
49+ €48,72
74+ €48,12
99+ €45,11
199+ €44,51
249+ €43,91
499+ €43,31
999+ €42,10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GEAR_IMP_S_DESC
Brand / Quality:
Drive-Flex - High Quality
Bore:
12.7mm = 0.5 (1/2) inch
Number of Teeth:
40
Variant:
Tooth Profile B
Pitch Circle Diameter:
50.8mm = 2 inch
Gear Modulus:
20DP
Technical
Number of Teeth 40
Pitch (dp) 2 inch
Bore (H8) 0.5 inch
Hub / Boss (dm) 1 inch
Outside (de) 2.1 inch
Width (A) 1 inch
Face Width (B) 0.375 inch
Modulus / Diametral Pitch DP 20 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
